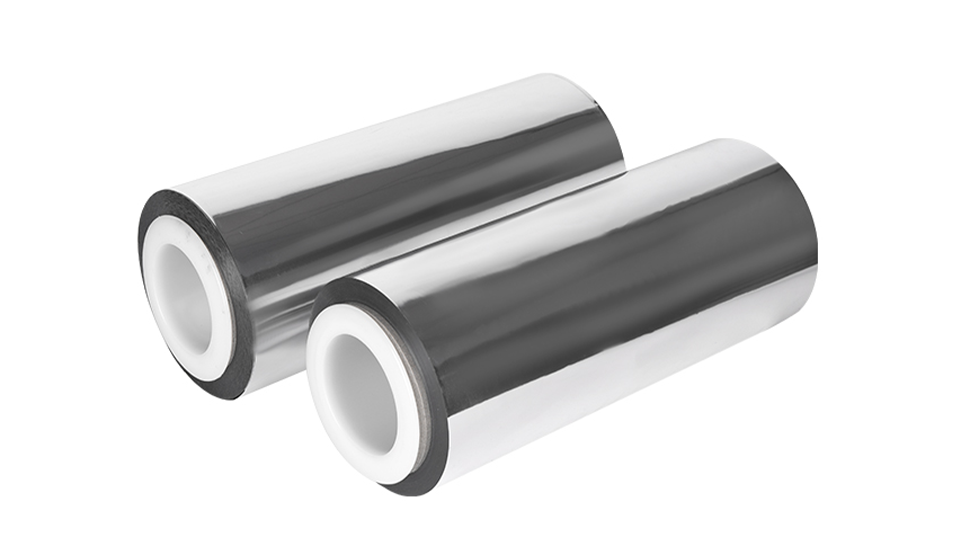

PET/VMPET/LLDPE High Barrier Flexible Packaging Film: Structure, Specs & Application Guide

If you're specifying materials for snack bags, coffee pouches, pet food, or liquid sachets, you've almost certainly hit the classic tri-laminate: PET / VMPET / LLDPE. It's the "goldilocks" option between transparent BOPP/CPP (cheap, low barrier) and PET/AL/PE (ultimate barrier, non-recyclable, expensive). This article breaks down how the structure works, what numbers to expect, and where it fits versus aluminum foil or emerging mono-material routes.

What Is PET/VMPET/LLDPE?

It's a three-layer flexible laminate​ built from outside → inside:

The three are bonded with two-component PU adhesive (typical coat weight 3.5–4.5 g/m², cured 45–55°C) to keep the barrier intact across slitting and pouching.

The logic: PET protects the print and handles heat; VMPET does the heavy lifting on O₂/H₂O/light; LLDPE seals the deal.​ Each layer covers the other's weakness.

Key Performance: OTR & WVTR You Can Expect

Real-world TDS data for a Matte PET12 / VMPET12 / LDPE105​ food-grade stand-up pouch:

• OTR: <0.8 cc/m²·day (23°C, 0% RH, ASTM F1927/F1307)

• WVTR: <1.2 g/m²·day (38°C, 90% RH)

Another supplier's PET12 / VMPET12 / LLDPE80​ laminate rolls in at:

• OTR ≈ 1.55 cc/m²·24h

• WVTR ≈ 0.94 g/m²·24h

Industry benchmark table (relative to alternatives):

 Actual OTR/WVTR depends on VMPET optical density (OD), aluminum adhesion, and PU adhesive penetration. Request COA per batch if shelf-life >12 months.

PET/VMPET/LLDPE vs PET/AL/PE vs Mono-Material

Takeaway: Choose PET/VMPET/LLDPE when you need near-foil barrier but want lower cost, no pinhole anxiety, and metal-detector compatibility—e.g., nuts, coffee, protein powder, pet treats, laundry pod refills.

Typical Applications

• Dry foods​ — roasted nuts, extruded snacks, potato chips (oxygen + light critical)

• Aroma-sensitive​ — ground coffee, cocoa, spice blends (VMPET blocks 99% UV)

• Pet food & treats​ — retort-adjacent pouches, stand-up with zipper

• Powders & supplements​ — protein, vitamin sachets (puncture resistance from LLDPE)

• Liquid sachets​ — sauces, dressings, laundry pods (pair with proper seal-integrity testing)

For stiffer stand-up pouches, total laminate thickness is usually ≥100 μm​ (e.g., 12/12/80 or 12/12/105) to get rigidity from the two PET layers.

Print & Finishing Options

• Gloss PET​ outer → shiny metallized "jewel" look

• Matte PET / MOPP​ outer → premium soft-touch, often with window knockout

• Matte lacquer coating​ on PET outer for luxury finish

• Gravure / flexo up to 10 colors, corona ≥42 dynes/cm

• Optional: resealable zipper, tear notch, Euro slot, degassing valve (coffee)

Compliance Checklist (What Buyers Usually Ask)

• FDA 21 CFR 177.1630 (PET) / 177.1520 (LDPE/LLDPE)

• EU 10/2011 Plastics Regulation

• Swiss Ordinance SR 817.023.21

• Heavy metals ≤100 ppm (EU 94/62/EC)

• BRCGS / IFS Food (AA/B grade) where applicable

FAQ

Q: Can PET/VMPET/LLDPE fully replace PET/AL/PE?​

A: For most dry/shelf-stable foods with 6–18 month targets — yes, and you save cost + gain metal-detector pass. For ultra-long shelf (24+ months) or highly oxygen-sensitive actives (some pharma), AL still wins.

Q: Why LLDPE instead of CPP for the seal layer?​

A: LLDPE gives better puncture resistance, hot-tack (important on VFFS), and drop-test performance — preferred for nuts/pet food. CPP is an option if you need higher heat resistance or clearer inner.

Q: Is it recyclable?​

A: Technically mixed-substrate (PET + PE), so not mono-recyclable. If brand sustainability goals demand mono-material, switch to BOPP/VMBOPP/CPP (PP-homogenous) but expect slightly different barrier/wrinkle behavior.

Q: What's the minimum gauge for a stand-up pouch?​

A: Total ≥100 μm is a safe rule (e.g., 12+12+76 or 12+12+105). Below that, the pouch loses rigidity at the base.

Sourcing CTA

When comparing quotes, don't just look at $/kg — ask suppliers for:

1. VMPET OD value​ (≥2.0 recommended for high barrier)

2. OTR / WVTR COA​ on the finished laminate (not just raw VMPET)

3. Aluminum adhesion (EAA test, ≥2.5 N/15mm)

4. Migration compliance for your target market (FDA / EU / China GB)

👉 Next step:​ Request a PET12 / VMPET12 / LLDPE80​ or LDPE105​ sample roll, run a short pouching trial, and check seal strength (target ≥35 N/15mm) against your filler speed.
