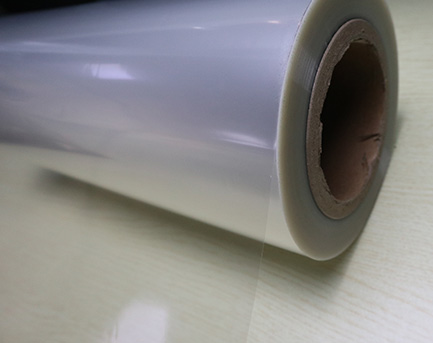

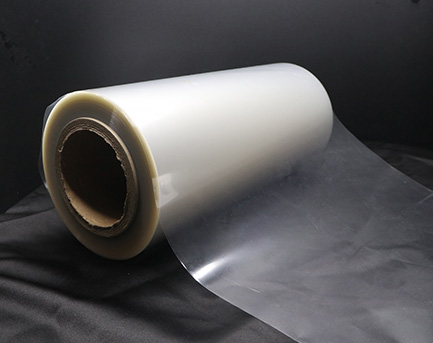

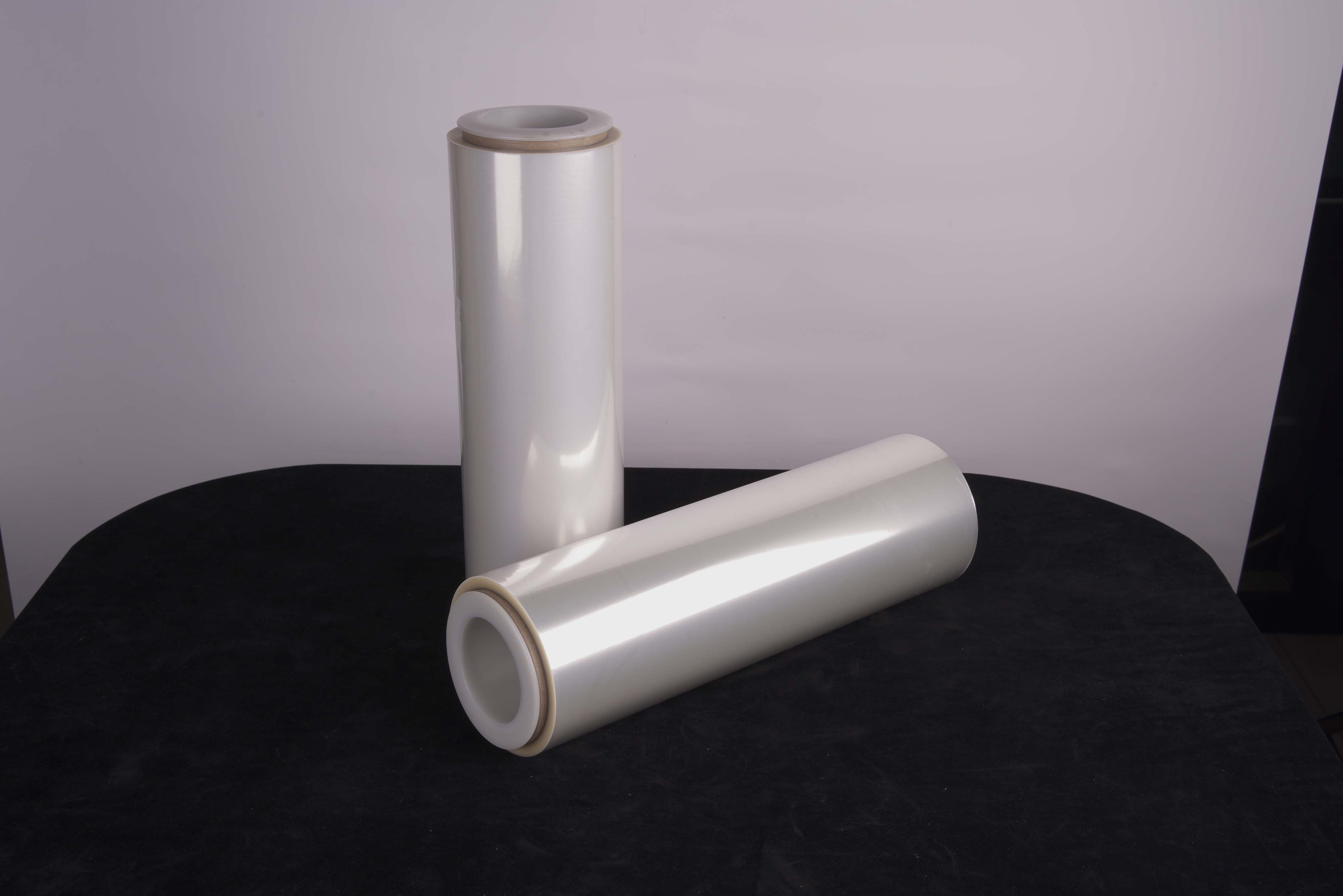

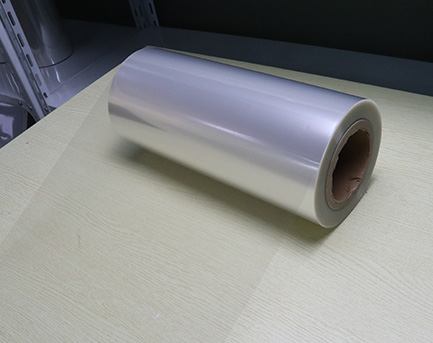

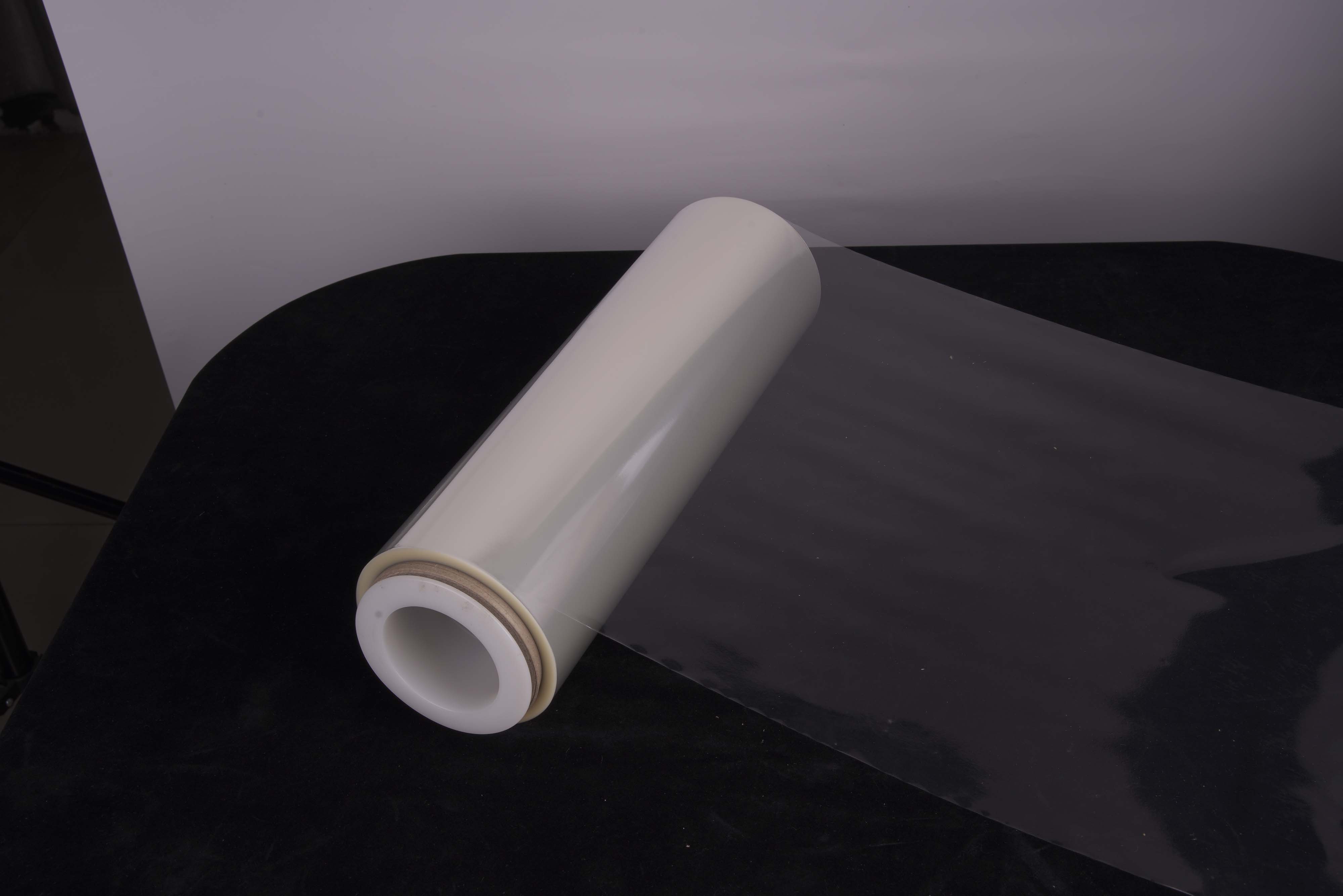

The AlOx coated PET film is coated with a transparent aluminum oxide layer on the surface of the BOPET film substrate by physical vapor deposition. It has good thermal stability, high temperature resistance, high strength and stable chemical properties.
Compared with co-extruded film, coated film and common metallized film, transparent AlOx metallized film is more environmental friendly, and has better barrier performance and printing performance. It provides better transparency visibility and printability, and is suitable for food packaging, medical products, medical materials, electronic products and other products that require higher barrier properties.
The product models are classified as follows:
PET-AlOx-020 : Normal AlOx PET Film
PET-AlOx-010 : High Barrier AlOx PET Film
PET-AlOx-T : Protective coating AlOx PET Film
PET-AlOx-TZ : Retortable AlOx PET Film
PET-AlOx-D01 : Ultra High Barrier AlOx PET Film

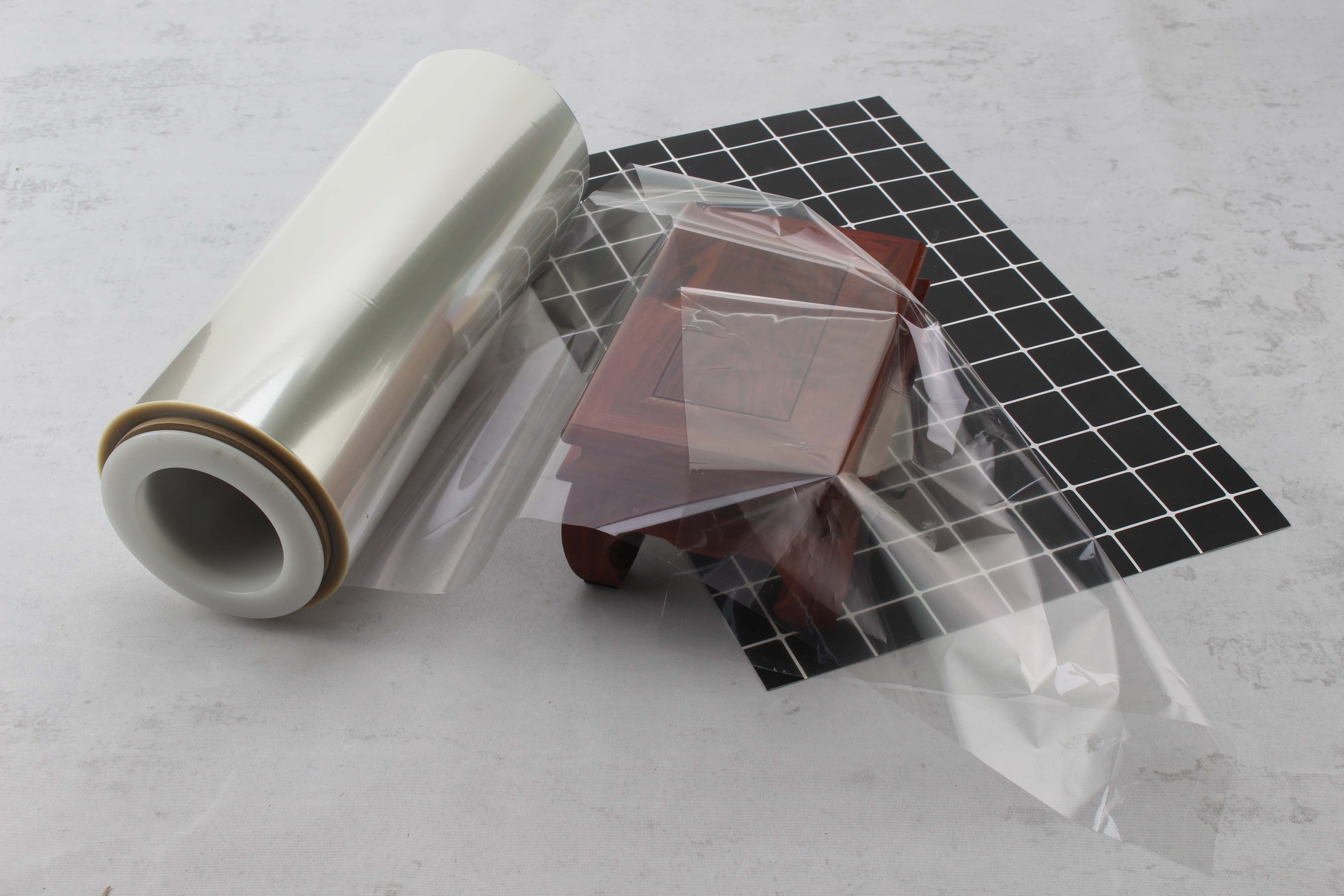

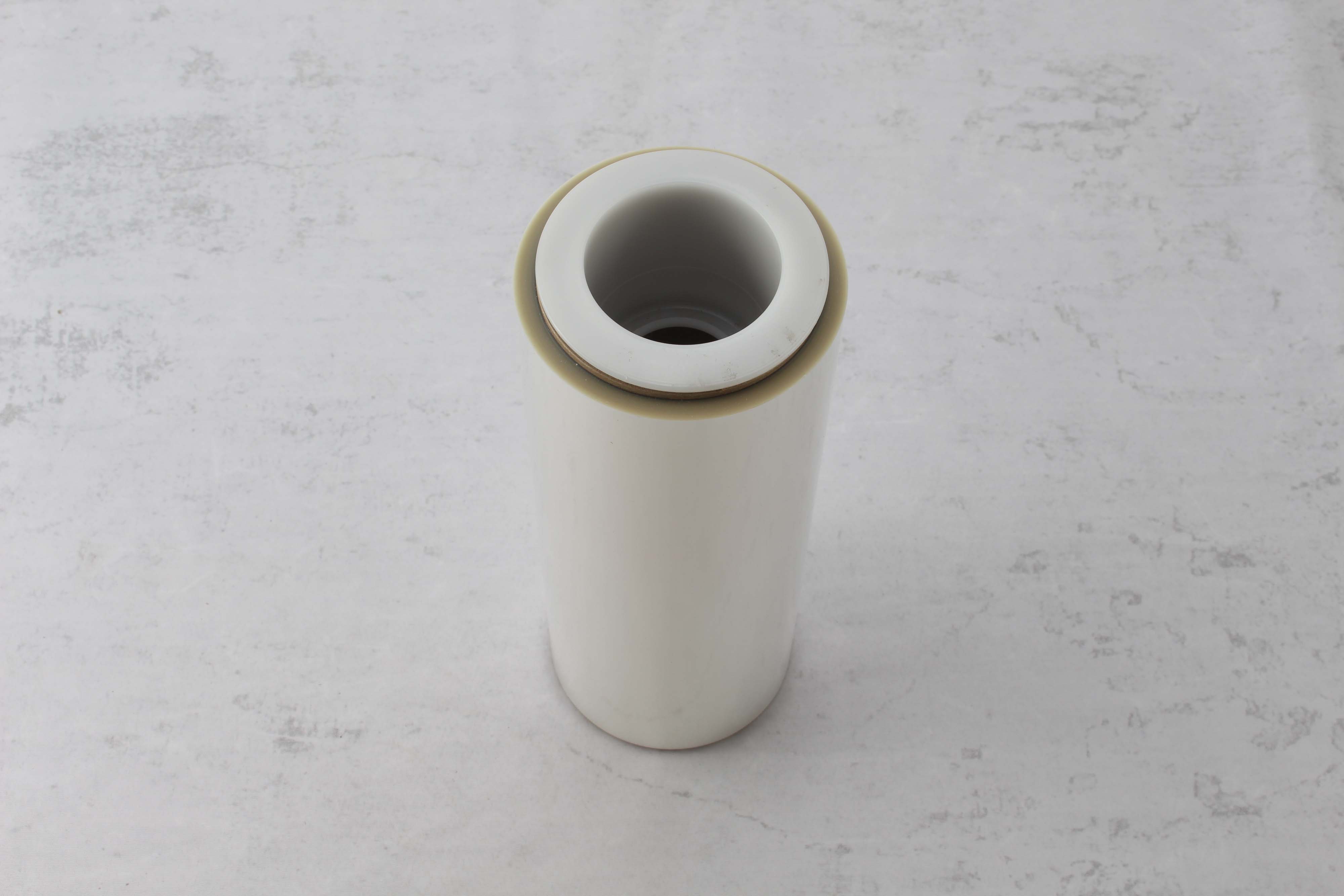

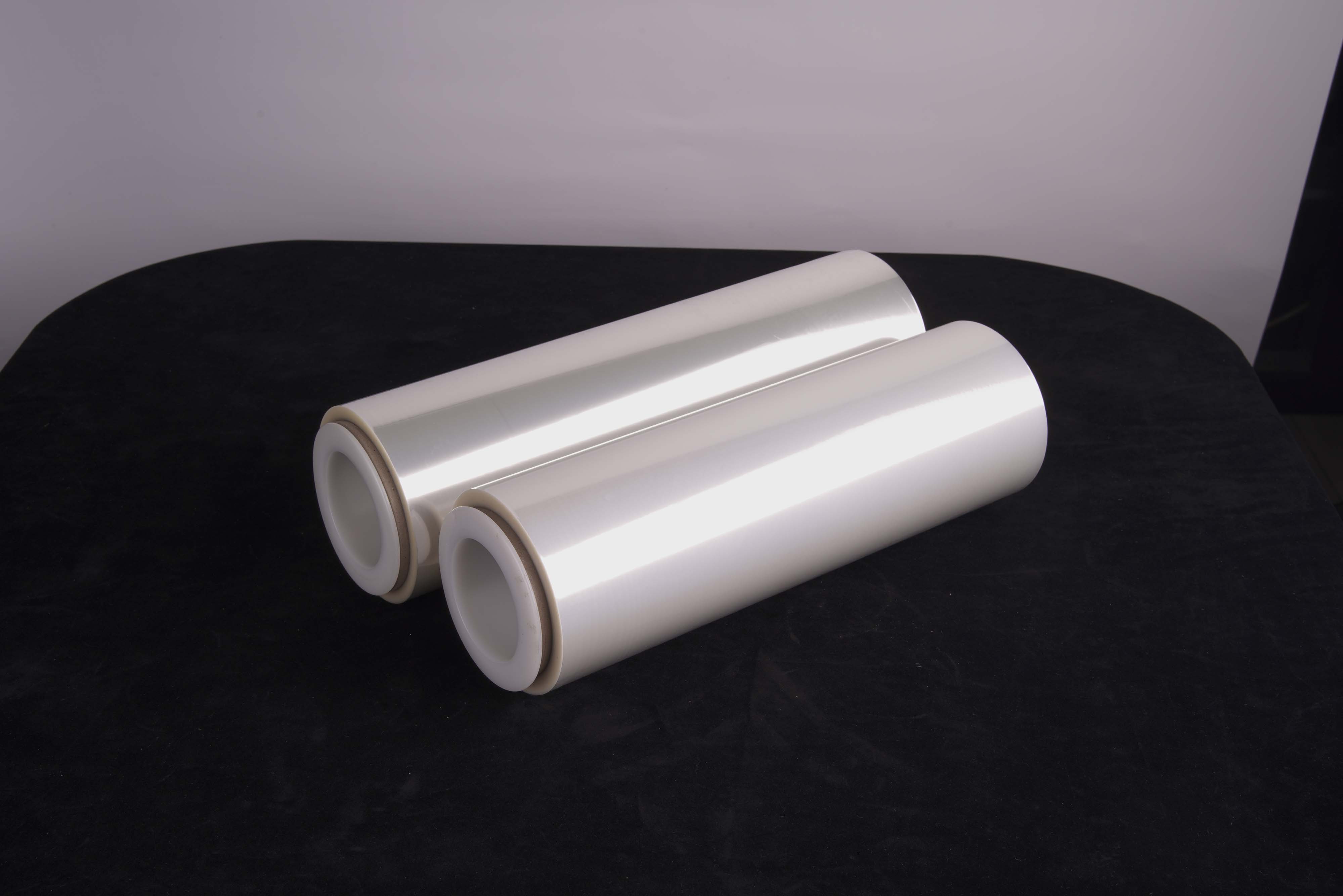

PET-AlOx-DTZ : Ultra High Barrier Retortable AlOx PET Film
|Item||Testing Methods||Unit||Typical Values|
|Tensile Strength||MD||GB/T 1040.3||MPa||≥170|
|Elongation at Break||MD||GB/T1040.3||%||≤200|
|Surface Tension||Al side||GB/T 14216-2008||mN/m||≥52|
|Light Transmittance||ASTM D-1003||%||≥89|
|Al Uniformity||ASTM D-1003||%||5|
|Al Adhesion||QB/T 2358-1998||N/15mm||3.5|
|Boiled (pasteurization), retorted (≤121 ° C, 30 minutes) performance||Can be retorted|
◆ Widely used in Packaging barrier for food such as meat, cooked food, biscuits, candy, dried fruit, tea, coffee, chocolate, dehydrated food, seafood, flavors, etc. and electronics, daily chemicals, military products, pharmaceuticals, etc.;
◆ Replace the K (PVDC) coated film to greatly improve the barrier properties of the product and reduce the environmental pollution caused by PVDC. It can be boiled and steaming cooked. It has better visibility and no yellowing;
◆ Replacement of BOPA, EVOH and co-extruded film,. It can greatly reduce the cost, greatly improve the barrier performance of the product, and with better adaptability;
◆ In place of SiOx, it can greatly reduce the cost. It has softer hand feeling, better transparency, better processing performance and better environmental recycling treatment;
◆ Replacing the use of aluminum foil, the composite strength is higher, the cost is lower, it can be see-through, microwave heating, and can be detected by metal;
◆ It can replace the common metallized film, has better barrier property and higher composite strength. It can be seen through perspective, can be heated by microwave, and can be detected by metal.
Common Composite Structure
AlOx (printing) / CPP (PE),
BOPP (PET) printing / AlOx / CPP (PE),
AlOx-T (printing) / CPP (PE),
AlOx (printing) / PA / RCPP,
PA (printing) / AlOx / RCPP
AlOx-TZ printing / RCPP or
PET printing / AlOx-TZ / RCPP
|Comparison of properties of aluminum oxide film and coating film|
|Project Description||KOPP||KPET||KOPA||ALOX(Unprotected coating）|
|Color||Light brown, the time is getting deeper and deeper||Light brown, the time is getting deeper and deeper||Light gray, lighter and longer||Light gray, lighter and longer|
|Printing ink transferability||Shallow dot loss is easy to print||Shallow dot loss is easy to print||Shallow dot loss is easy to print||Excellent ink coloring|
|Coating and substrate adhesion||The coating has poor adhesion to the substrate, about 1N/15mm||The coating has poor adhesion to the substrate, about 1N/15mm||The coating has poor adhesion to the substrate, about 1N/15mm||The aluminum layer has strong adhesion to the substrate, about 3.5N/15mm|
|Composite strength||Composite strength is weak, depending on coating adhesion||Composite strength is weak, depending on coating adhesion||Composite strength is weak, depending on coating adhesion||Strong composite strength, depending on ink adhesion or glue strength|
|Heat seal strength||1N/15cm||1N/15cm||1N/15cm||0|
|Scratch resistance||Thicker coating, scratch resistant||Thicker coating, scratch resistant||Thicker coating, scratch resistant||The coating is thin, not scratch resistant, and is easily scratched by hard objects to affect barrier properties.|
|Safe and environmentally friendly||Organic matter is produced during production, and toxic gases are generated when waste is recovered and burned. It is forbidden to be used in the EU, Japan, etc.||Organic matter is produced during production, and toxic gases are generated when waste is recovered and burned. It is forbidden to be used in the EU, Japan, etc.||Organic matter is produced during production, and toxic gases are generated when waste is recovered and burned. It is forbidden to be used in the EU, Japan, etc.||Surface layer is a safe substance|
The above information is only for the use of the customer. Due to the processing conditions of the manufacturer, equipment and final product requirements are different.
Therefore, we are only responsible for the performance of the film, not for each of your specific methods of use and application.
If there is new knowledge and experience in the materials, we will correct the information and will not notify you one by one.
