Semi Metallized PET film (VPET-DZ)
The product description
Semi-transparent polyester metallized film, also known as semi-transparent electronic film, because of its electrical conductivity and antistatic properties, transparent, composite bag visible content, aluminum is very thin; Bright luster, good flatness and friction coefficient.
Technical Date
|
Standard |
Item No |
||||||
|
DZ-15 |
DZ-16 |
DZ-18 |
DZ-22 |
||||
|
Item |
Testing Methods |
Unit |
values |
values |
values |
values |
|
|
Thickness |
GB/T 6672-2001 |
12 |
12 |
12 |
12 |
12 |
|
|
Tensile Strength |
MD |
GB/T 1040.3 |
MPa |
≥170 |
≥170 |
≥170 |
≥170 |
|
TD |
≥170 |
≥170 |
≥170 |
≥170 |
|||
|
Elongation at Break |
MD |
GB/T 1040.3 |
% |
≤200 |
≤200 |
≤200 |
≤200 |
|
TD |
≤200 |
≤200 |
≤200 |
≤200 |
|||
|
Heat Shrinkage |
MD |
150ºC*30min |
% |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|
TD |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|||
|
Surface Tension |
Al side |
150ºC*30min |
mN/m |
≥48 |
≥170 |
≥48 |
≥48 |
|
Non-Al side |
≥42 |
≥170 |
≥42 |
≥42 |
|||
|
Light Transmittance |
林尚SL162 |
% |
35-40% |
40-45% |
45-50% |
65-70% |
|
|
Haze |
ASTM D-1003 |
% |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|
|
Al Uniformity |
ASTM D-1003 |
% |
5 |
5 |
5 |
5 |
|
|
Al Adhesion |
QB/T 2358-1998 |
N/15mm |
2.5 |
2.5 |
2.5 |
2.5 |
|
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
1.Both aluminized film unique conductive function, and transparency, composite bag visible content;
2.Anti uv, anti static electricity.
3.It has the effect of antistatic and electromagnetic interference.

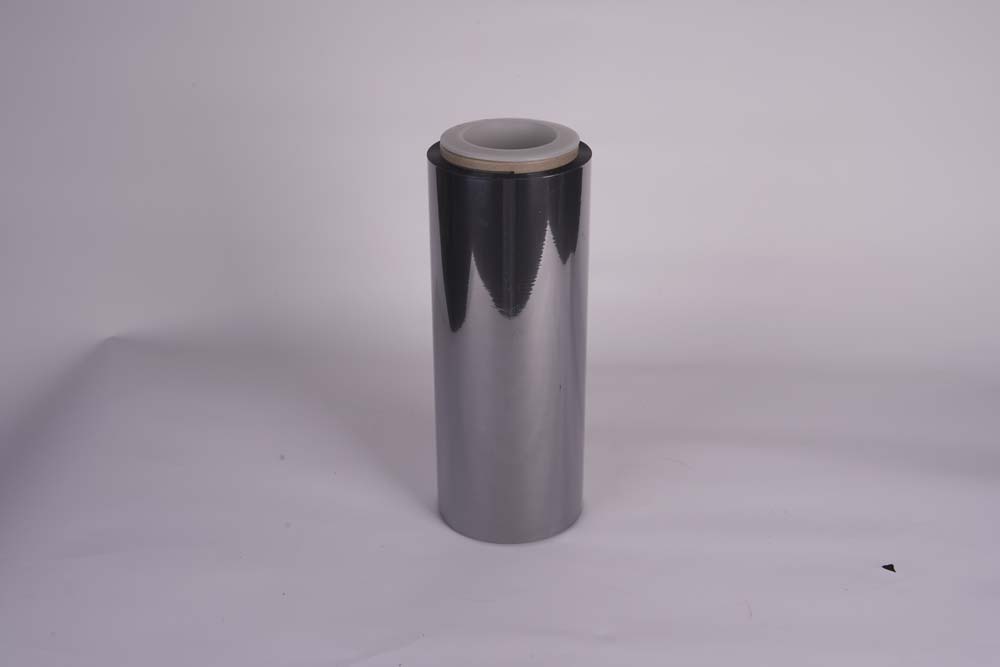

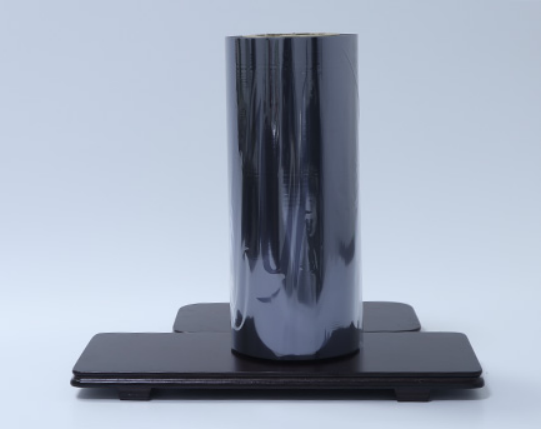

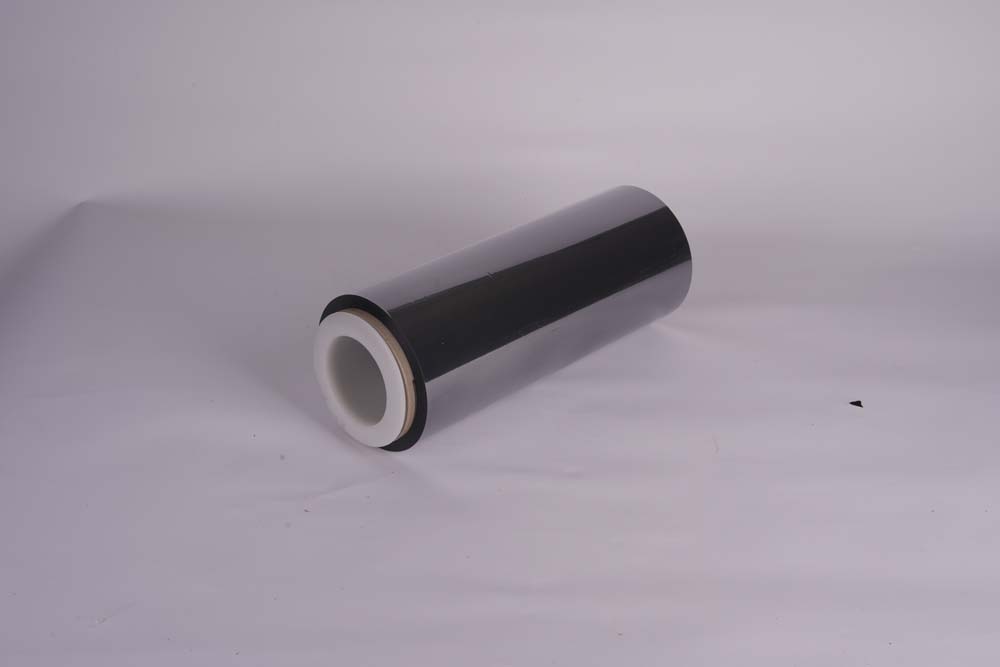

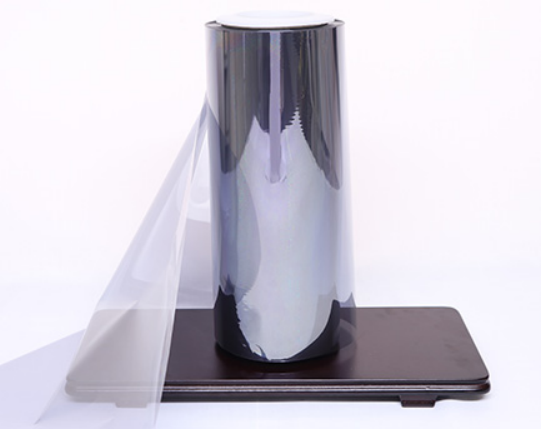

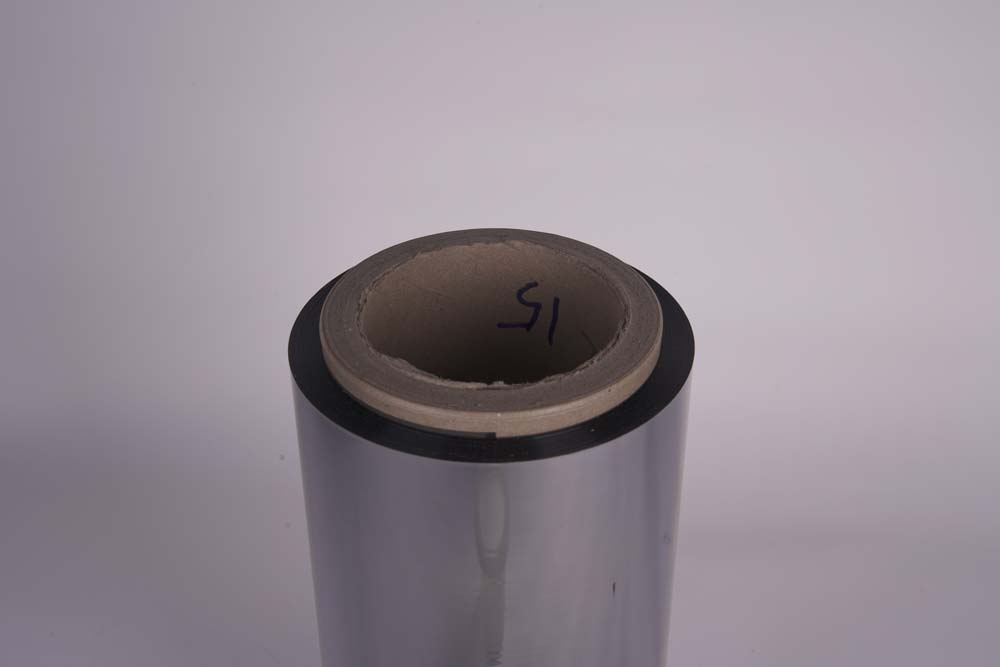

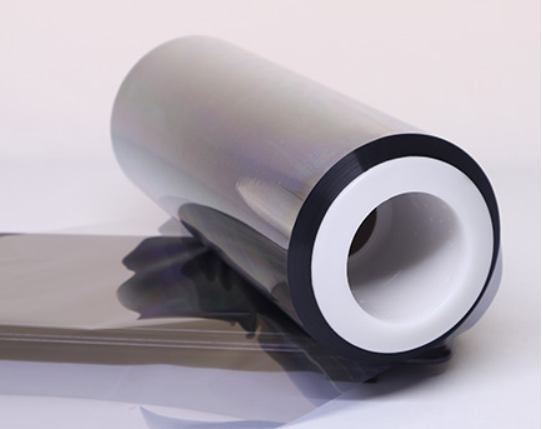

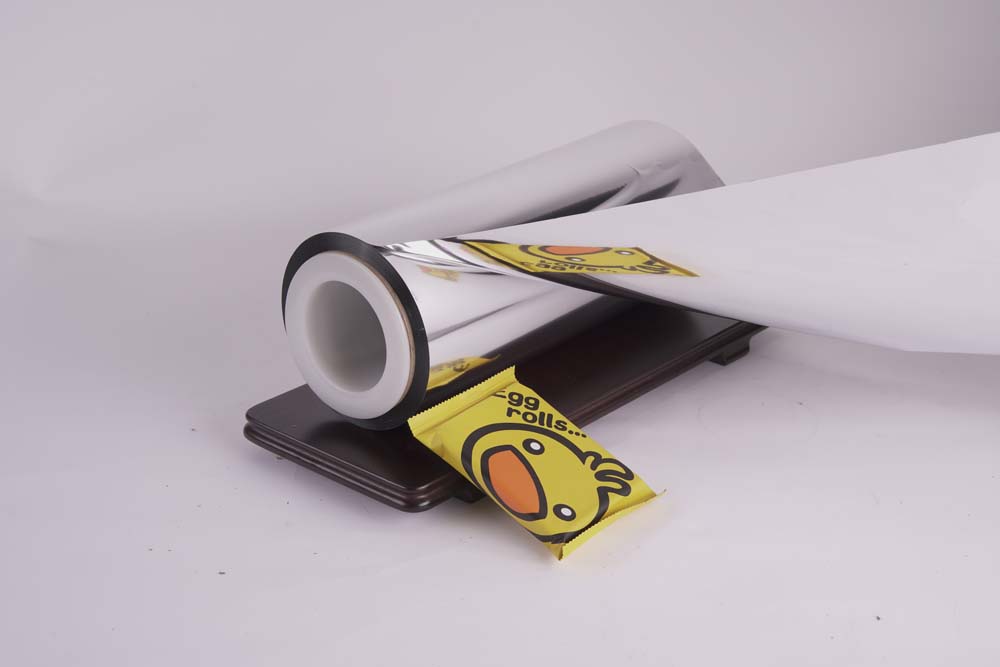

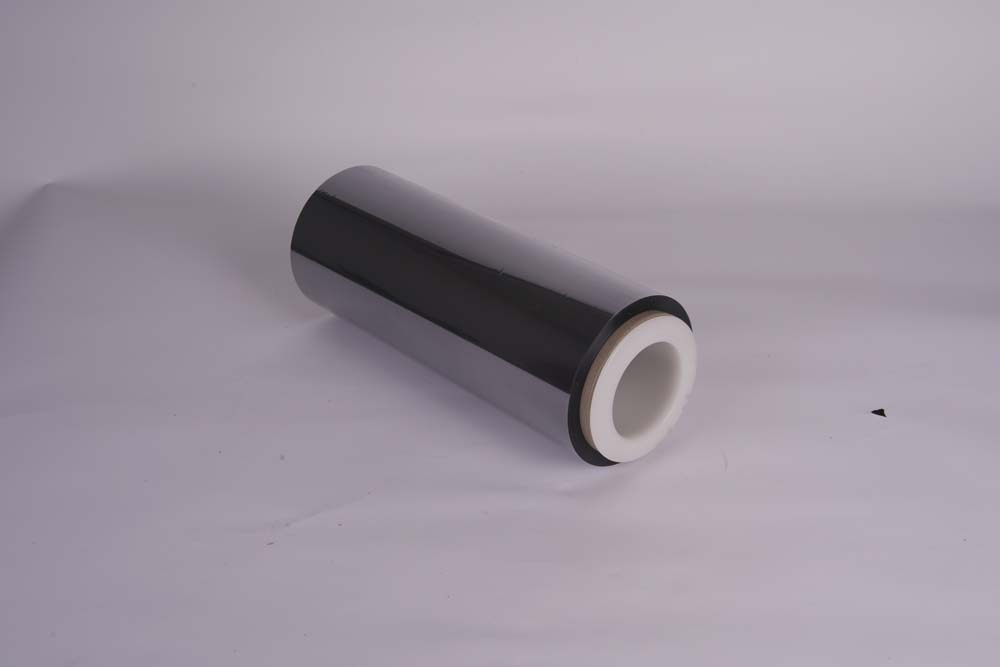

Product display
 |
 |
 |

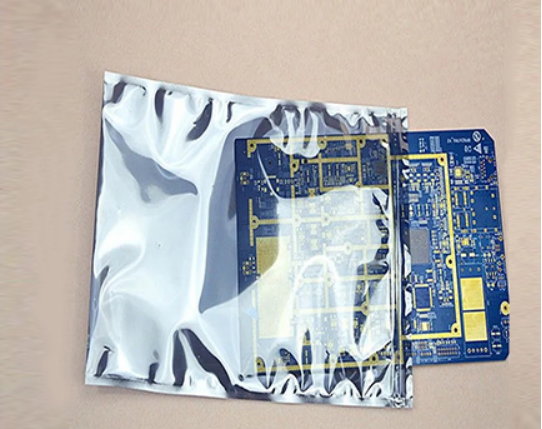

Application

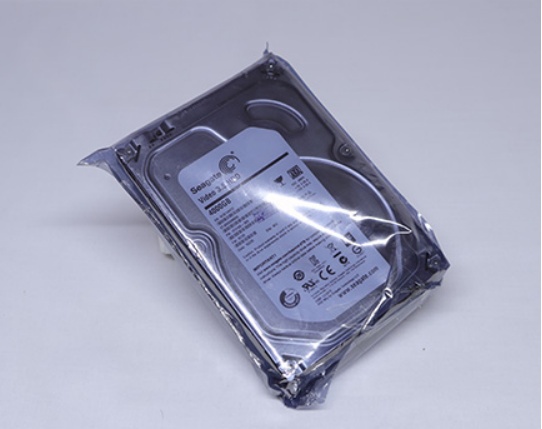

Products are widely used in the outer packaging bags of electronic products.
 |
 |
 |
