Release PET Ffilm(PET-LX)
The product description
Release PET Film, another names as Siliconized PET Film, Peel Film, Slip Film, Thinner Paper, Anti-adhesion Film and Photomask. This film has property of smooth surface, high tensile strength and uniform coating. It has no wrinkle, tearing, dust, fish-eyes and needle hole.
Technical Date
|
Item |
Testing Methods |
Units |
Standard |
Typical Values |
|
|
GB/T16958-2008 |
|||||
|
Thickness |
GB/T6672 |
um |
─ |
19~188 |
|
|
Release Force |
TESA 7475 tape |
g/inch |
─ |
5~150 |
|
|
(30cm/min,180º) |
|||||
|
Residual Contact Force |
NITTO 31B TAPE |
% |
≥90 |
94 |
|
|
Haze |
GB/T 2410 |
% |
≤8.0 |
3.5 |
|
|
Light Transmition |
GB/T 2410 |
% |
≥85 |
87 |
|
|
Heat Shrinkage Rate |
MD |
150℃*30min |
% |
≤3.0 |
1 |
|
TD |
% |
≤3.0 |
0 |
||
|
Surface Tension |
Corona |
GB/T 14216-2008 |
mN/m |
≥48 |
52 |
|
Non-corona |
─ |
46 |
|||
|
Tensile Strength |
MD |
GB/T1040.3 |
Mpa |
≥170 |
195 |
|
TD |
≥170 |
190 |
|||
|
Elongation at Break |
MD |
GB/T1040.3 |
% |
≤200 |
130 |
|
TD |
≤200 |
120 |
|||
|
Coefficient of Friction |
dynamic |
GB/10006 |
─ |
≤0.55 |
0.35 |
|
static |
─ |
≤0.65 |
0.4 |
||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
It has good releasing properties and the releasing strength can be customized.

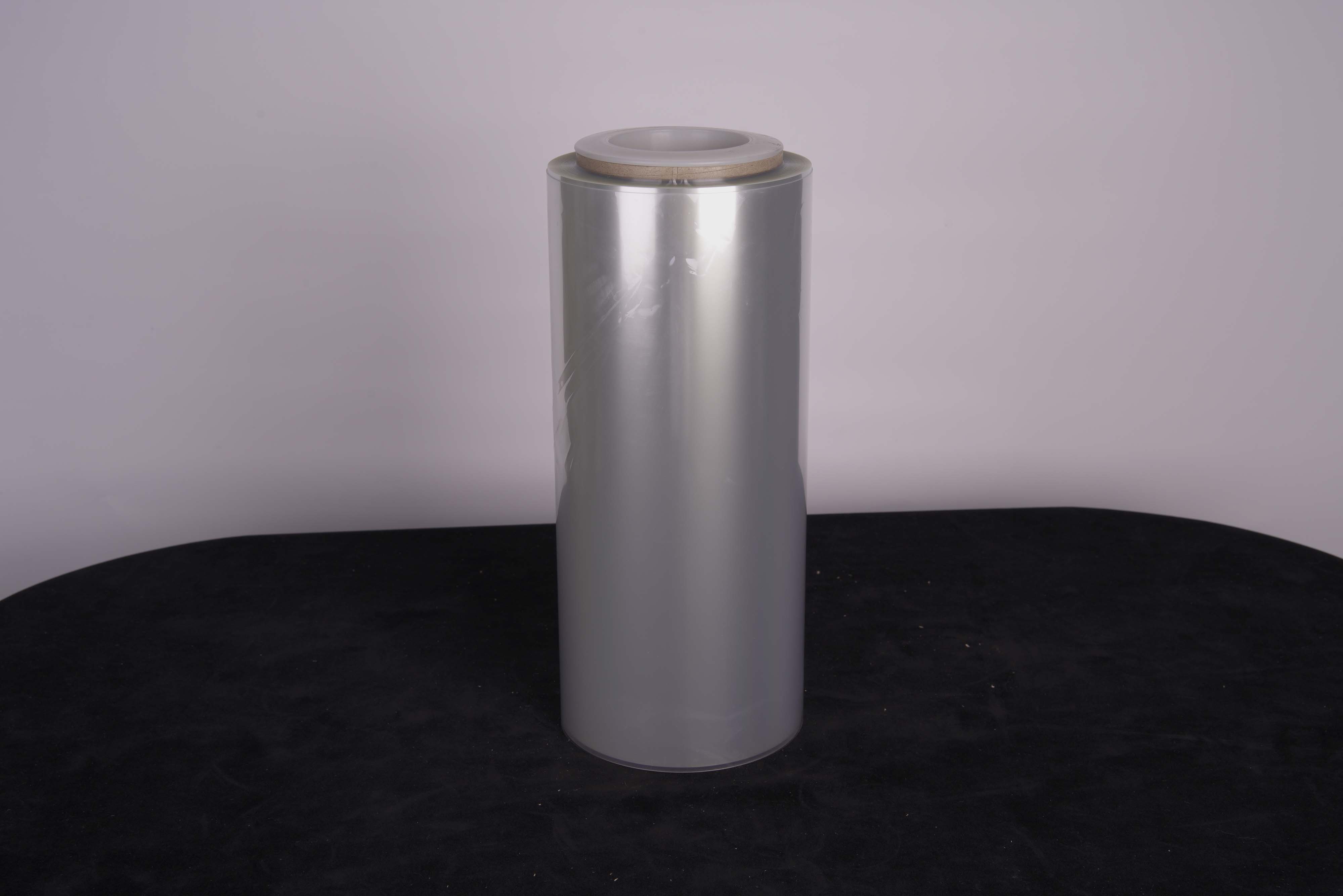

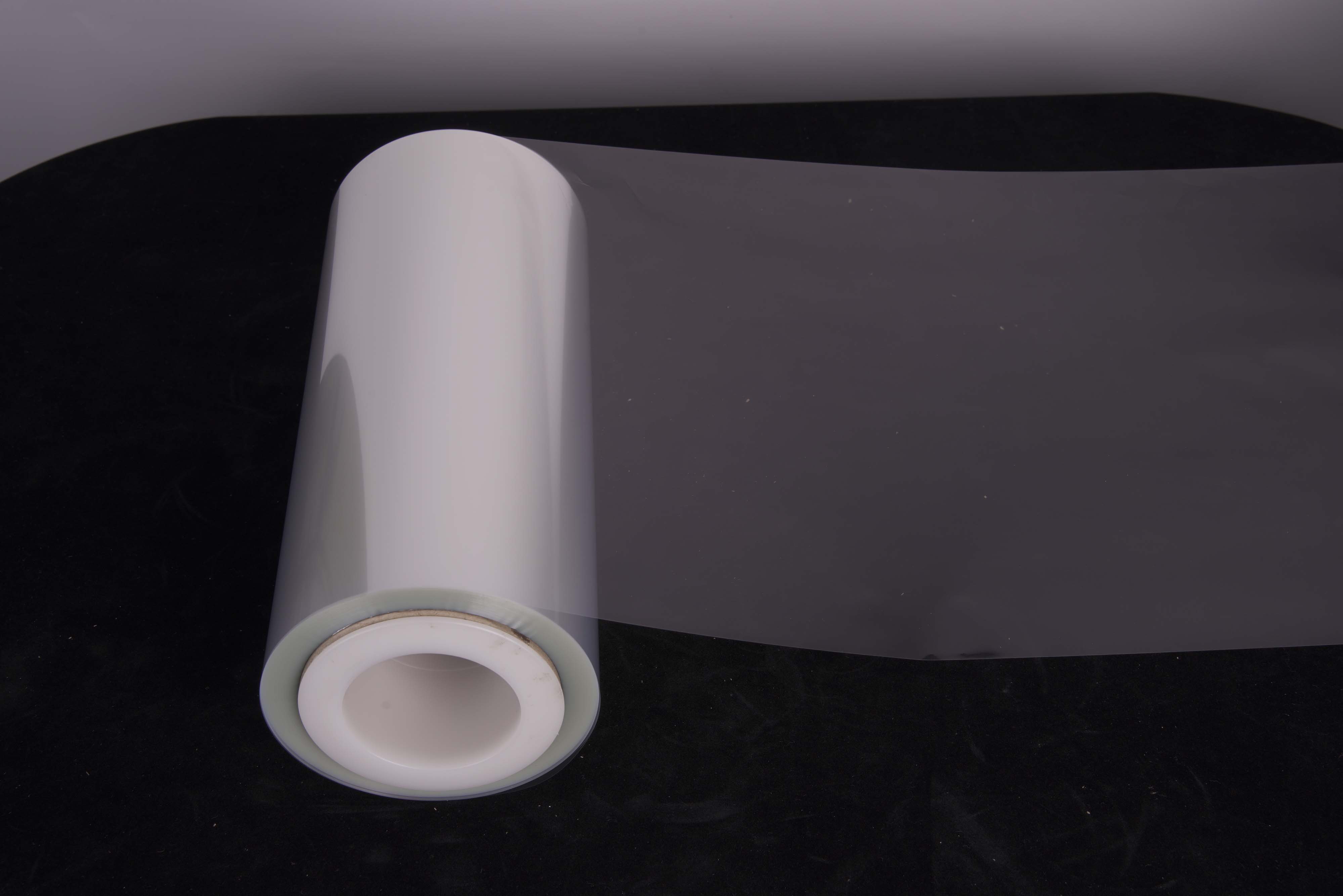

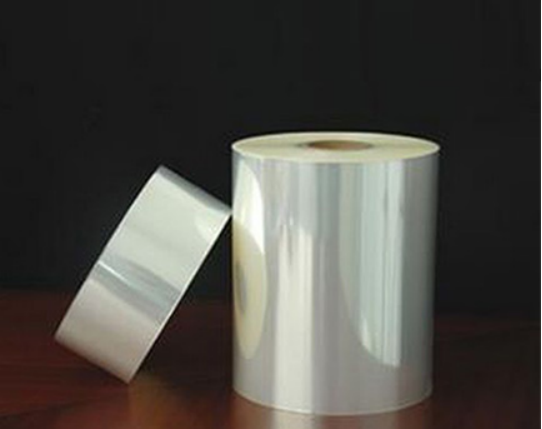

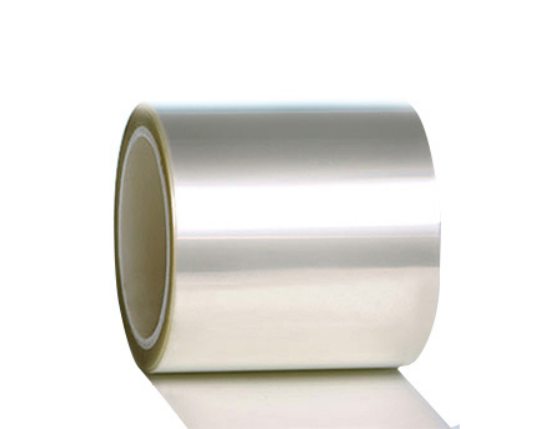

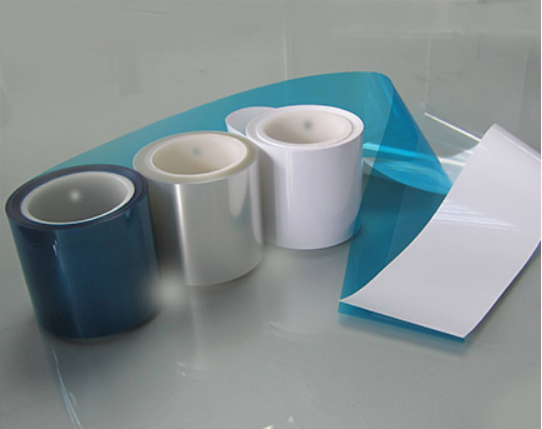

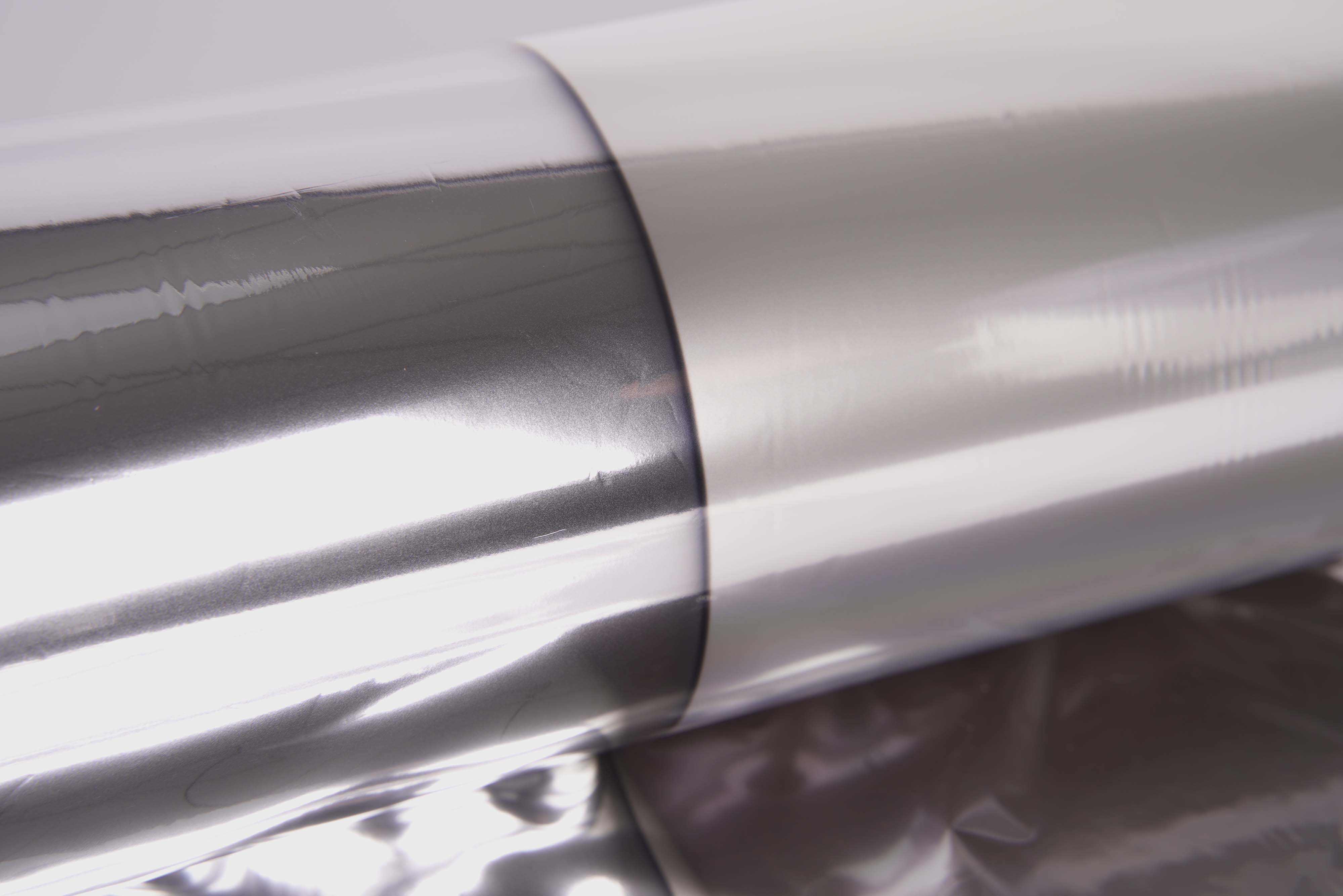

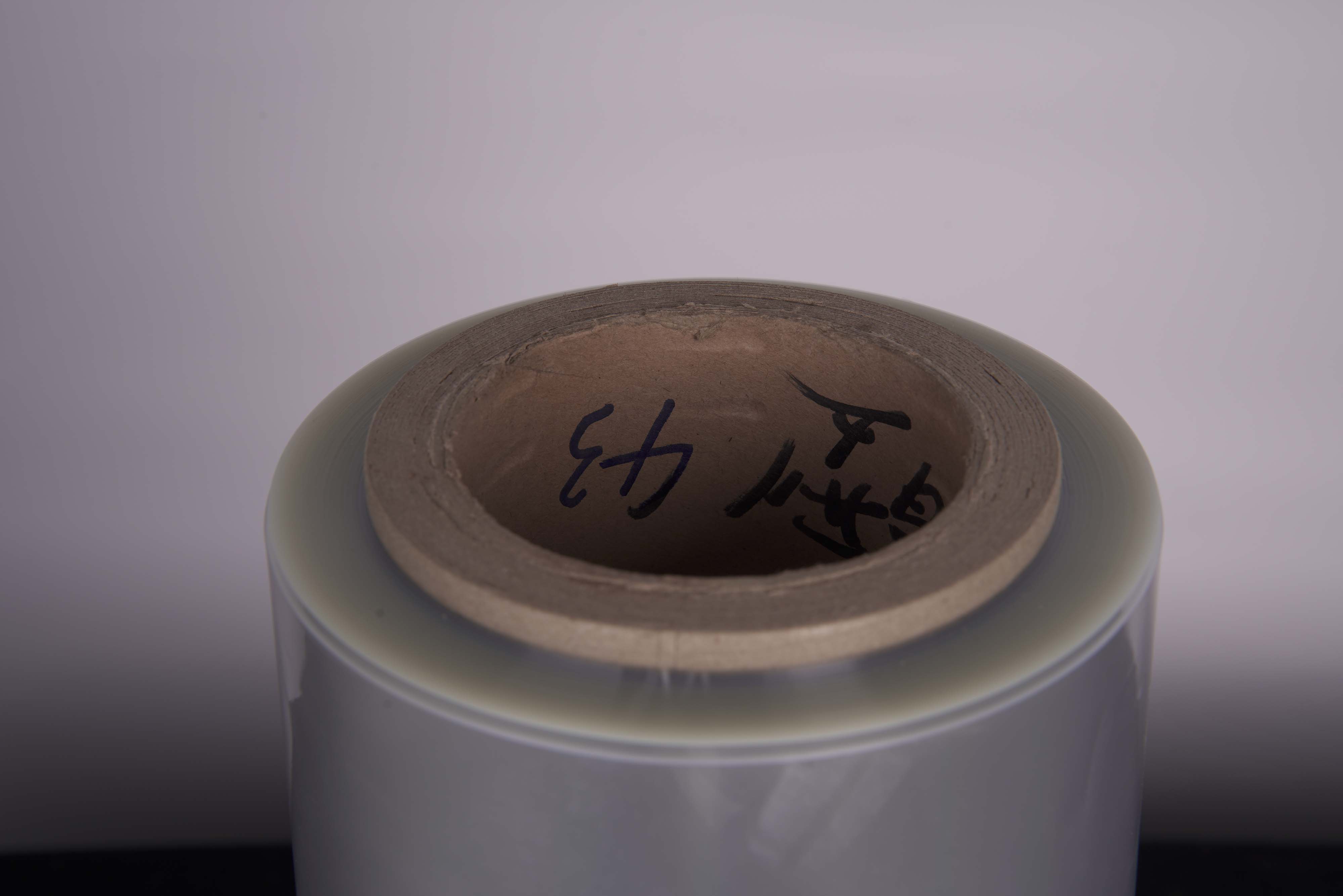

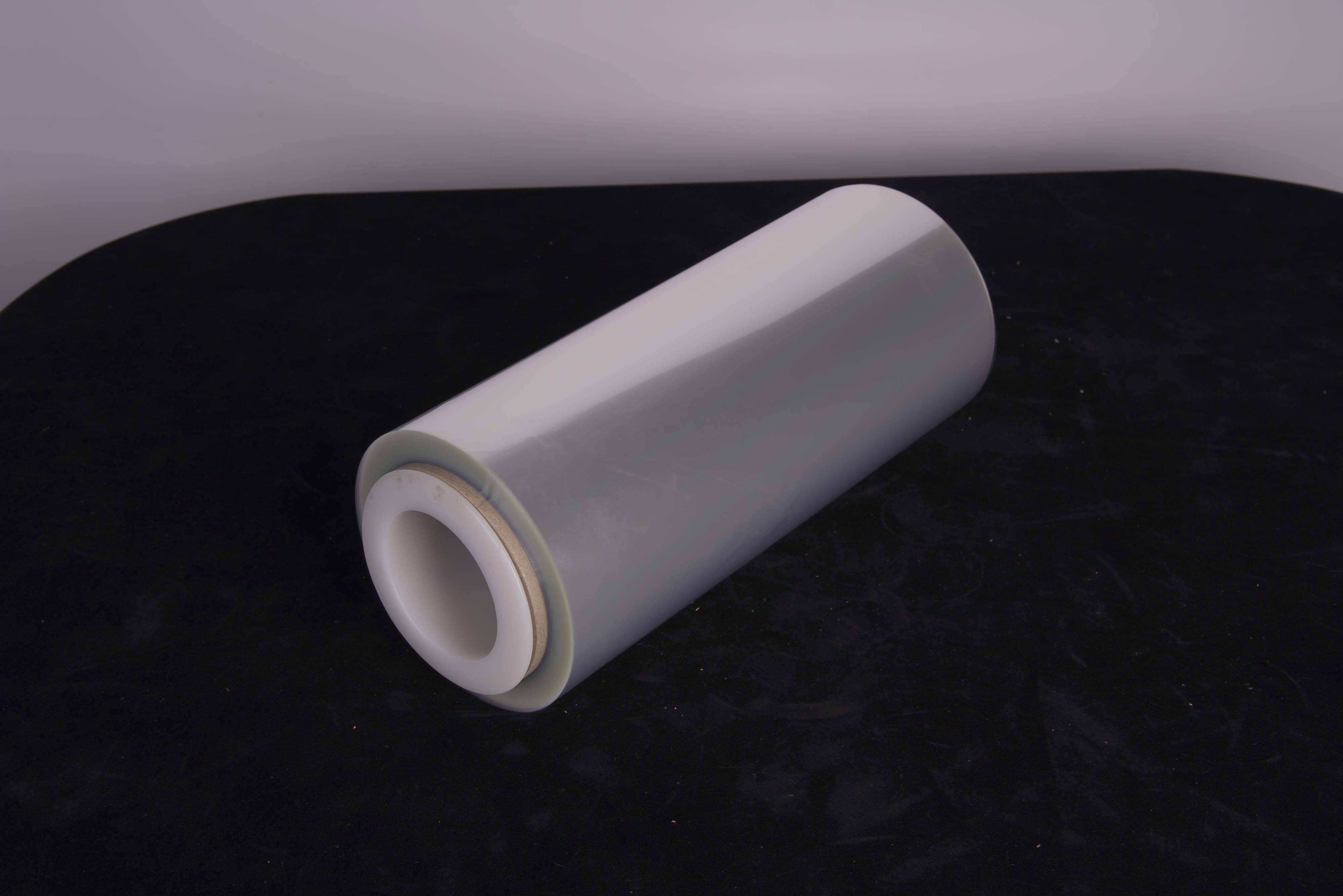

Product display
 |
 |
 |

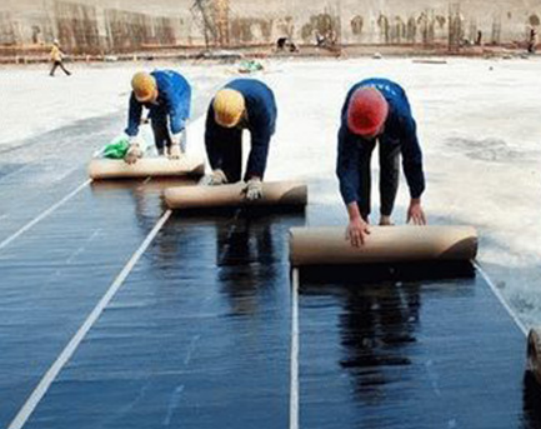

Application
It is used for protecting building materials, labels and electronic products. It is also used for laser counterfeit, laminating, stickers, sealing papers, reflecting materials, water proofing materials, PU laminating papers, release paper, reflecting materials, waterproof materials, PU laminating papers, medical ointment papers, sanitary papers, ahesives and gum protecting.
 |
 |
 |
