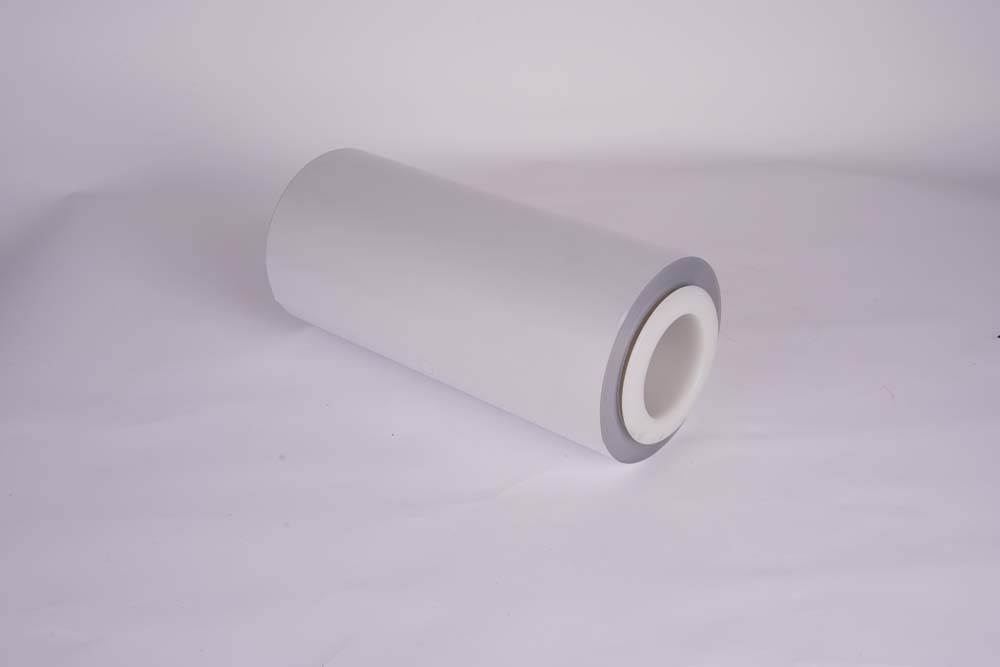

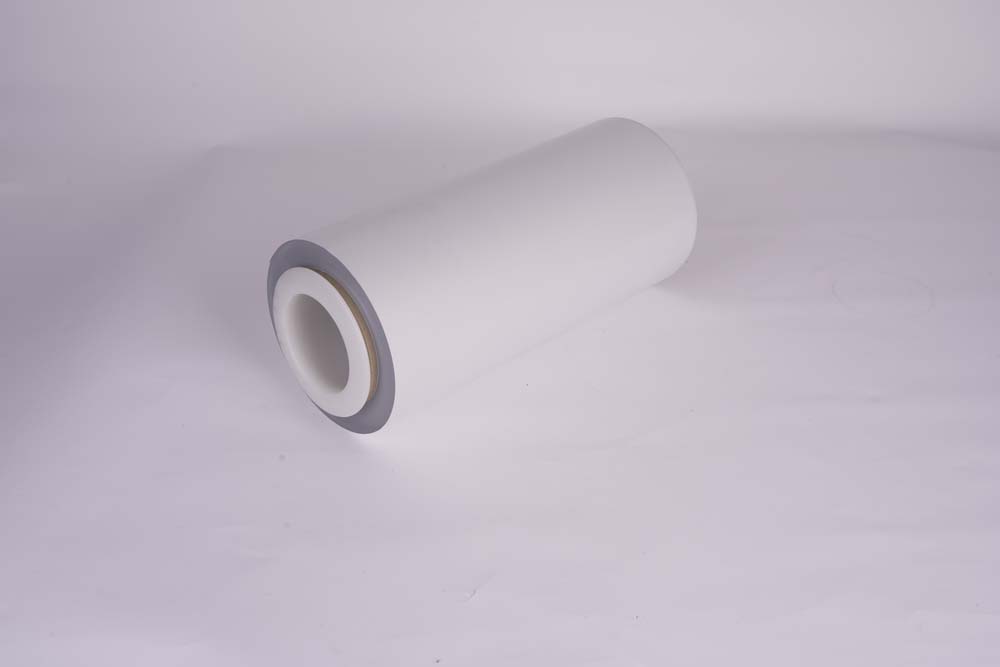

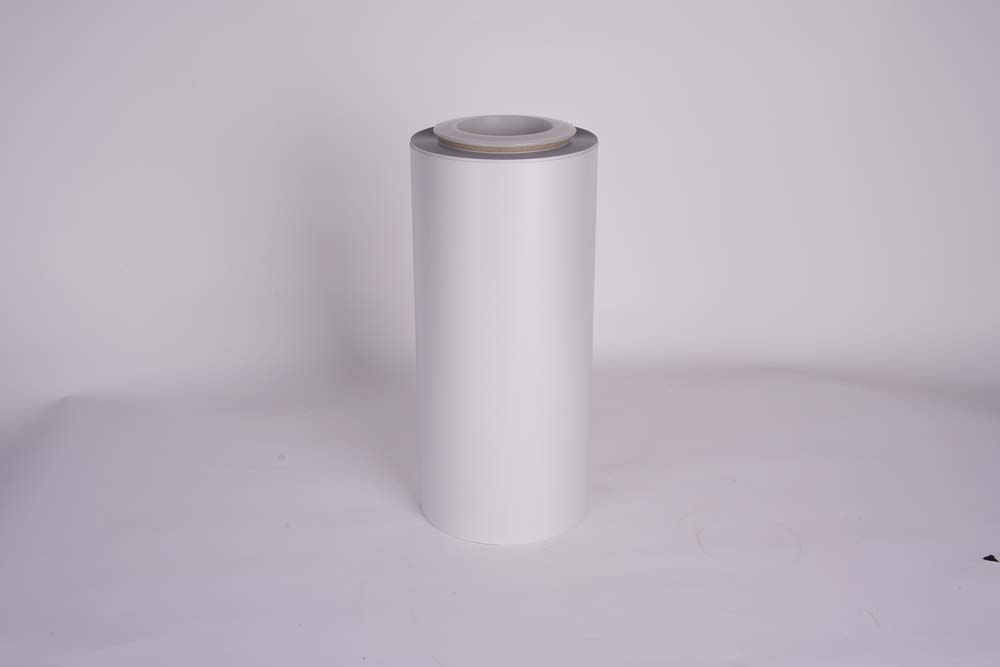

Reflective PET Metallized Film（VPET-TZ）

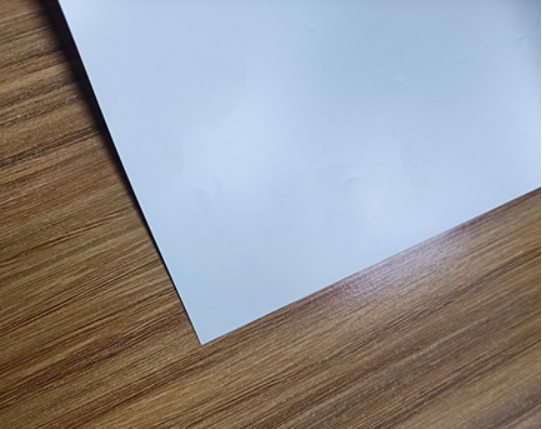

Product display

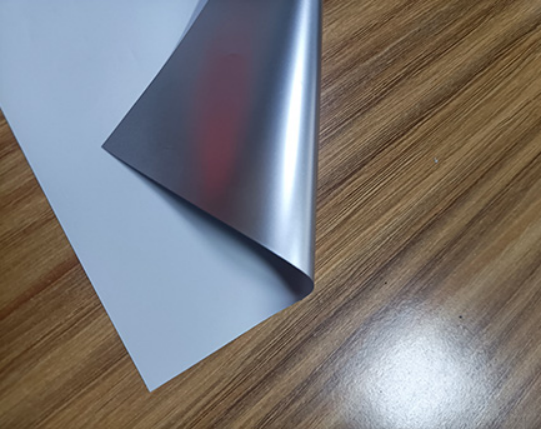

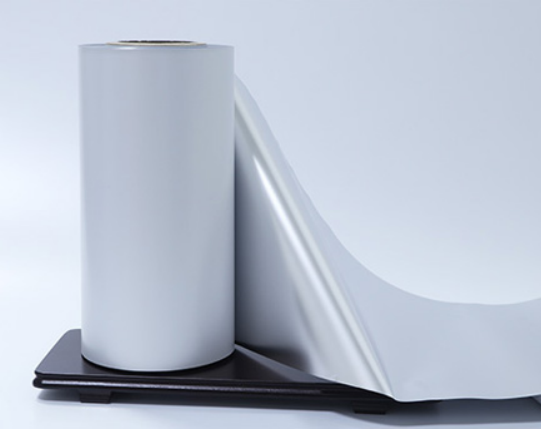

Reflective PET Metallized film（VPET-TZ）can be divided into matte silver PET reflective film and bright silver PET reflective film.
Technical Date
|
Item |
Sdandard values |
||
|
1 |
Item No |
VPET-01 |
VPET-TZ |
|
2 |
surface |
No more than two obvious longitudinal lines in each 5cm width, and no scratching, wrinkling, empty line, crystal point, needle eye, splashing, impurity pollution, etc. Obvious periodic fracture shall not exceed 1, allowing slight aluminum film chromatic aberration and a small number of light leakage points.
|
|
|
3 |
Width mm |
values -0，+2 |
|
|
4 |
Thickness μm |
50±3 |
|
|
5 |
Heat Shrinkage（150℃,30min） |
MD(≤2) |
|
|
TD(≤1) |
|||
|
6 |
Al Thickness（Ω/口） |
≤1.5 |
|
|
7 |
Al Adhesion |
1 |
|
|
8 |
lustrousness 60° |
220±100 |
|
|
9 |
reflectivity（SA2000）% |
9~30 |
|
|
10 |
Surface Tension（mN/m） |
≥48 |
|
|
11 |
Double85 test |
Aluminum layer oxide |
No Aluminum layer oxide |
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Product display
 |
 |
 |
Application

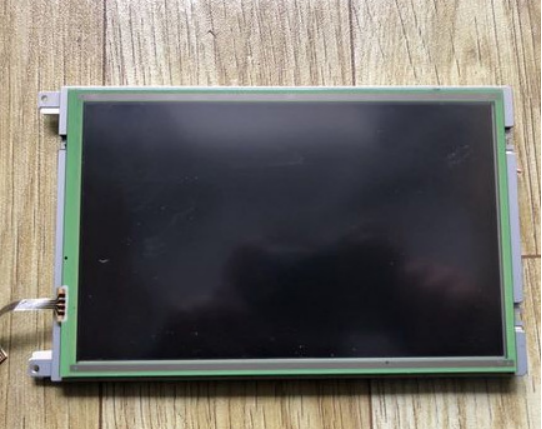

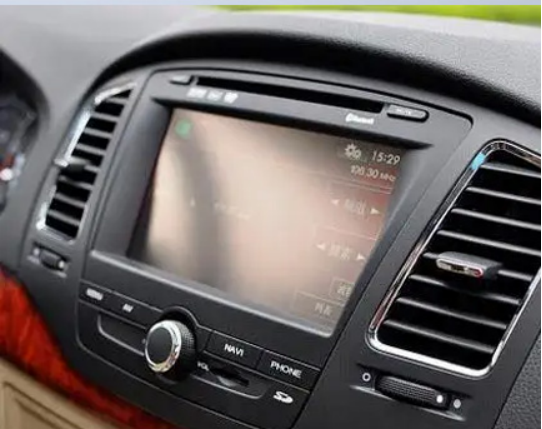

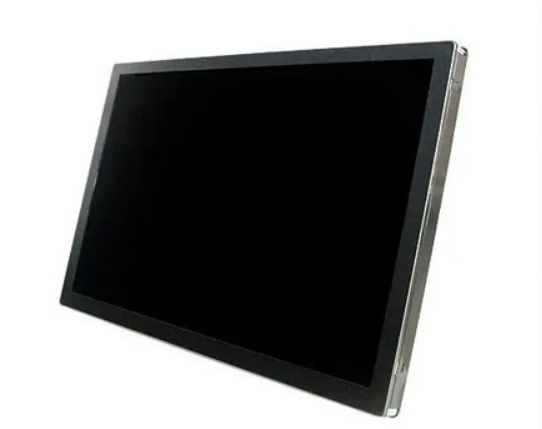

Widely used in polarizing composite, widely used in all kinds of electronic LIQUID crystal display
 |
 |
 |
