The product description
Red PET FILM has two types: Original Red COLOR PET Film and Red Color Coating PET Film. Red Film has the same properties as the normal transparent PET film. It has wide applications, such as protective film materials, decoration materials and labels materials.
Technical Date
| Item | Testing Methods | Units | Standard | Typical Values | |||
| GB/T16958-2008 | |||||||
| Thickness | GB/T6672 | um | ─ | 12~188 | |||
| Haze | GB/T 2410 | % | ≥100 | 105 | |||
| Light Transmition | GB/T 2410 | % | ─ | 26 | |||
| Gloss | GB/T 8807 | % | ≥80 | 82 | |||
| Whiteness | GB/T 2913 | ─ | CUSTOMIZED | ─ | |||
| Heat Shrinkage Rate | MD | 150℃*30min | % | ≤3.0 | 1 | ||
| TD | % | ≤3.0 | 0.2 | ||||
| Surface Tension | Corona | GB/T 14216-2008 | mN/m | ≥48 | 52 | ||
| Non-corona | ─ | 46 | |||||
| Tensile Strength | MD | GB/T1040.3 | Mpa | ≥170 | 170 | ||
| TD | ≥170 | 175 | |||||
| Elongation at Break | MD | GB/T1040.3 | % | ≤200 | 110 | ||
| TD | ≤200 | 90 | |||||
| Coefficient of Friction | dynamic | GB/10006 | ─ | ≤0.55 | 0.35 | ||
| static | ─ | ≤0.65 | 0.4 | ||||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
The color is bright and uniform. It is glossy and good stiff. It has good tensile strength and printing properties.

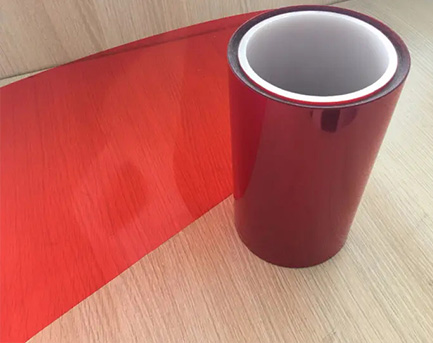

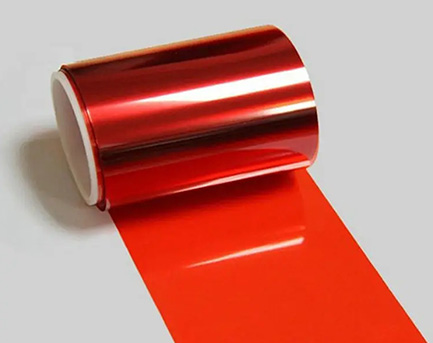

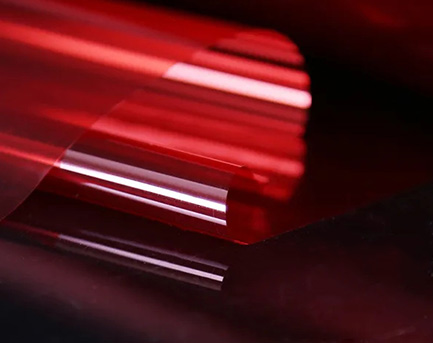

Product display
 |
 |
 |

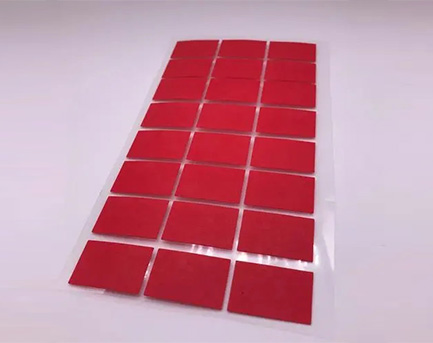

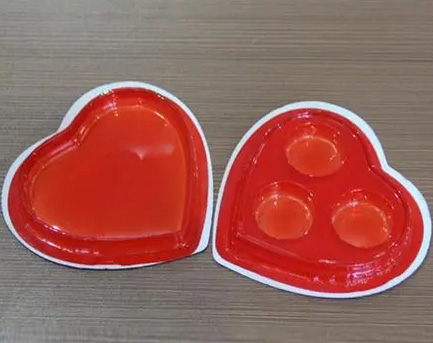

Application
1.It is used for electronic packages, building decorative materials, labels, cosmetics, metal products packages and so on.
2.It is available in curtain composite materials, the ceiling of thermal transferring etc.
 |
 |
 |
Original Red PET Film
