Anti- Explosion Metallized PET Film (Window film)
The product description
Vacuum metallized anti-explosion PET film (also known as solar film), widely used in automotive window film, architectural glass, bathroom partition glass, indoor glass spacing, etc. with glass explosion-proof, UV protection, heat insulation and other functions.
It is high definition, stable color and uniform performance. It makes the glass safe, beautiful and comfortable,and it is energy saving and eco-friendly.
Technical Date
|
Standard |
Item No |
||||||||
|
VPET-VLT5% |
VPET-VLT10% |
VPET-VLT18% |
VPET-VLT30% |
VPET-VLT45% |
VPET-VLT70% |
||||
|
Item |
Testing Methods |
Unit |
Typical Values |
Typical Values |
Typical Values |
Typical Values |
Typical Values |
Typical Values |
|
|
Thickness |
GB/T 6672-2001 |
µm |
15-50 |
15-50 |
15-50 |
15-50 |
15-50 |
15-50 |
|
|
Tensile Strength |
MD |
GB/T 1040.3 |
MPa |
≥170 |
≥170 |
≥170 |
≥170 |
≥170 |
≥170 |
|
TD |
≥170 |
≥170 |
≥170 |
≥170 |
≥170 |
≥170 |
|||
|
Elongation at Break |
MD |
GB/T 1040.3 |
% |
≤200 |
≤200 |
≤200 |
≤200 |
≤200 |
≤200 |
|
TD |
≤200 |
≤200 |
≤200 |
≤200 |
≤200 |
≤200 |
|||
|
Heat Shrinkage |
MD |
150ºC*30min |
% |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|
TD |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|||
|
Surface Tension |
Al side |
GB/T 14216-2008 |
mN/m |
≥48 |
≥48 |
≥48 |
≥48 |
≥48 |
≥48 |
|
Non-Al side |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
|||
|
ight Transmittance |
林尚SL162 |
% |
5% |
10% |
18% |
30% |
45% |
70% |
|
|
Al Thickness |
- |
Å |
280 |
200 |
180 |
160 |
110 |
40 |
|
|
Base Film Haze |
ASTM D-1003 |
% |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
|
|
Al Uniformity |
ASTM D-1003 |
% |
2 |
2 |
3 |
3 |
3 |
3 |
|
|
Al Adhesion |
QB/T 2358-1998 |
N/15mm |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
|
Common Thickness |
16μm、19μm、23μm、36μm、50μm |
||||||||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
1.With glass explosion-proof, uv protection, heat insulation, visual separation and other functions

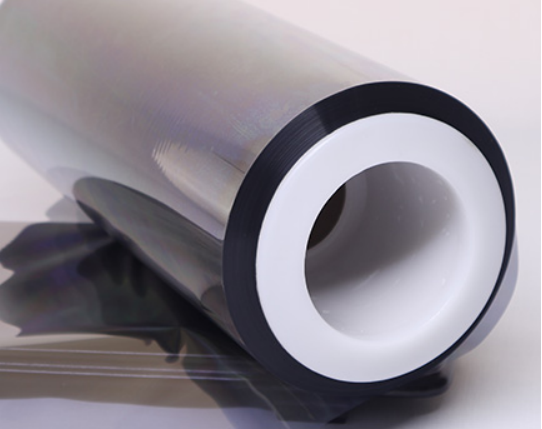

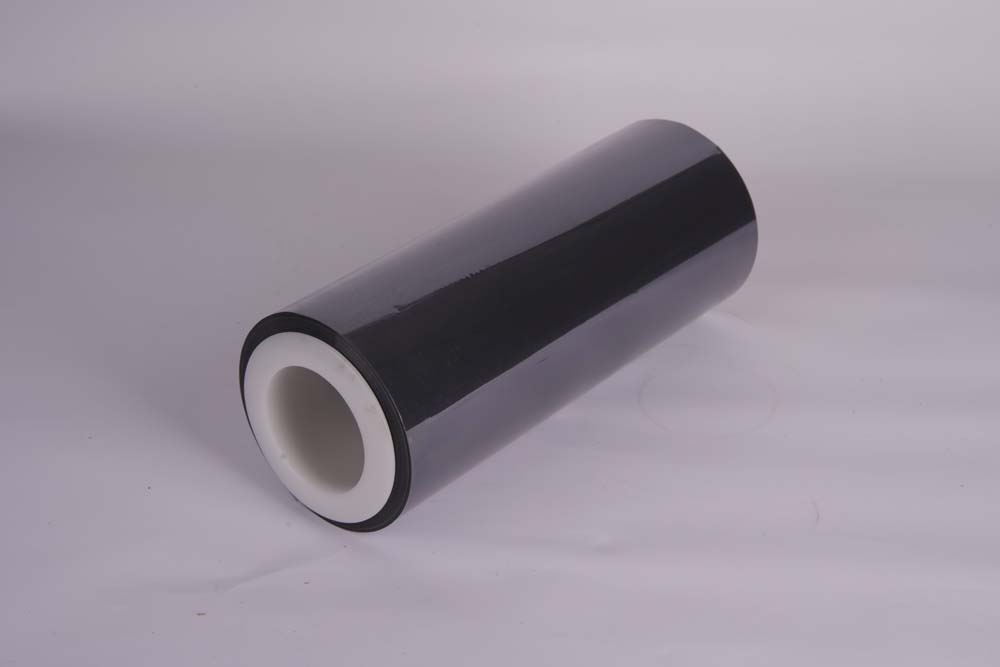

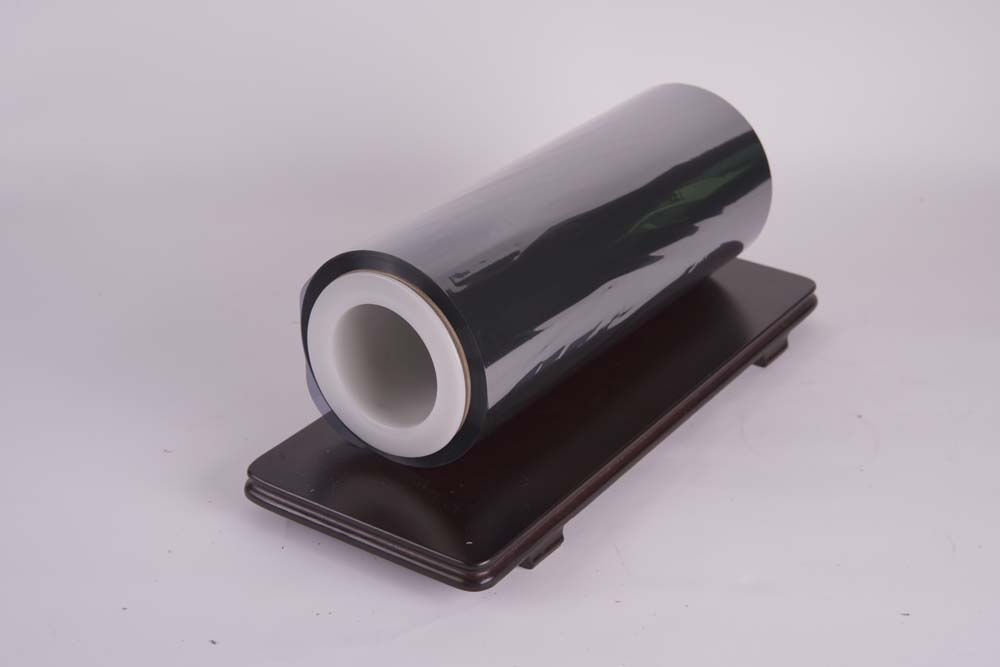

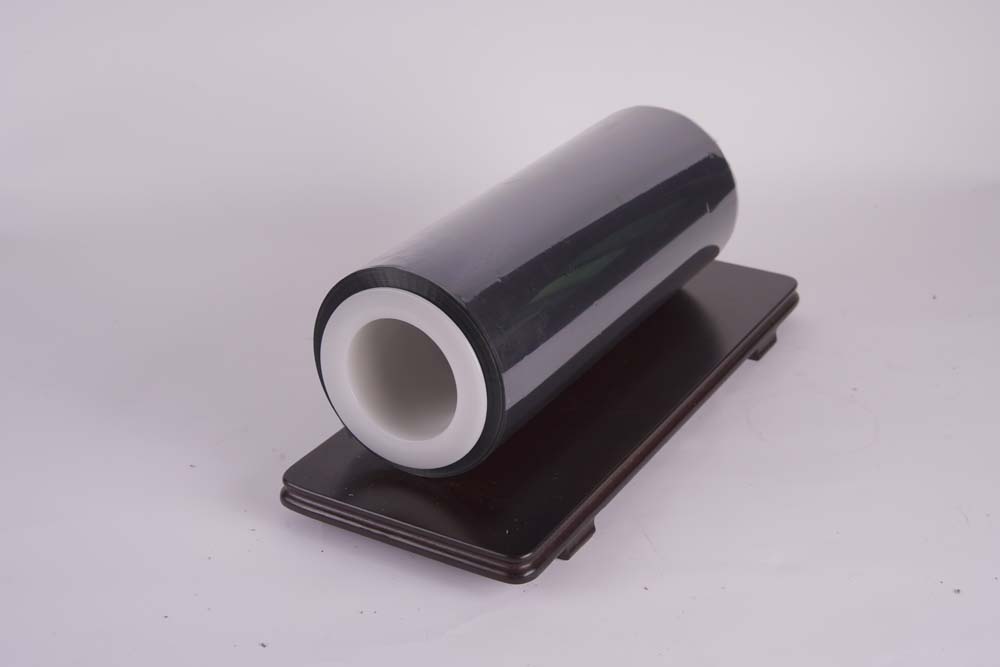

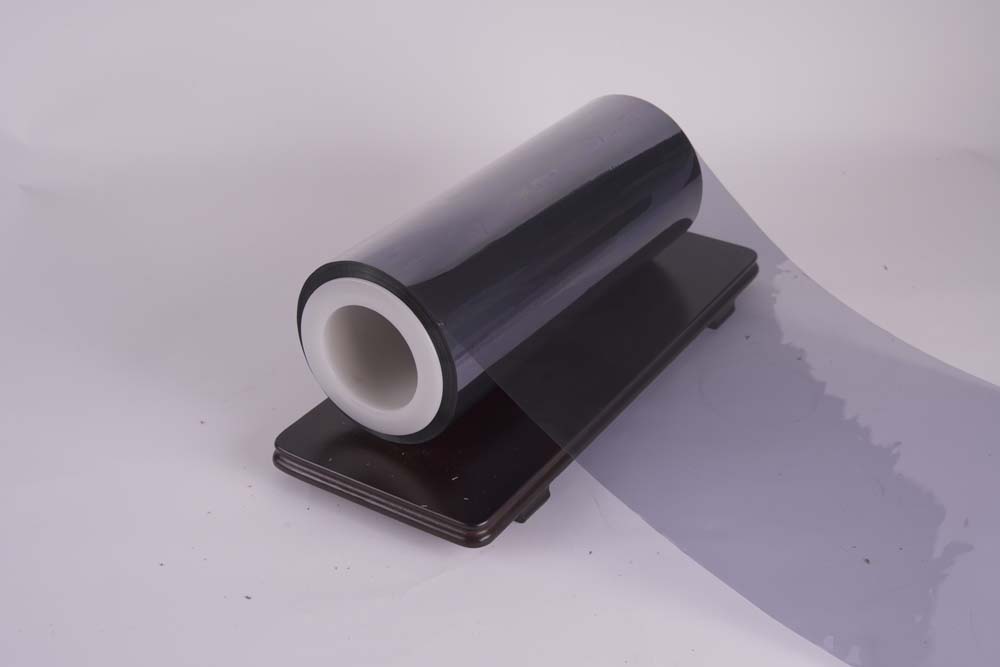

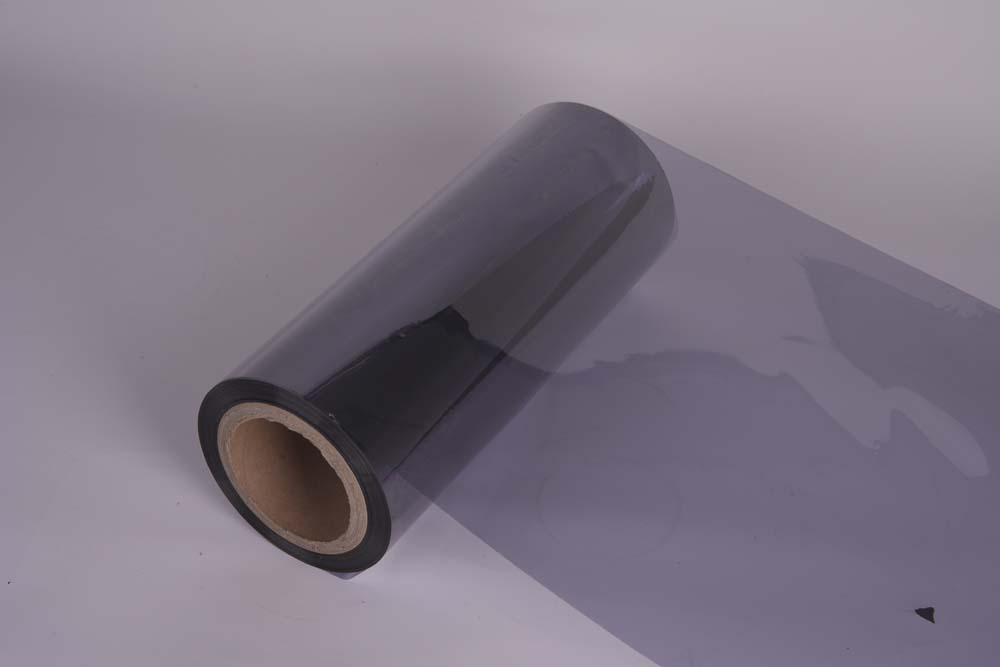

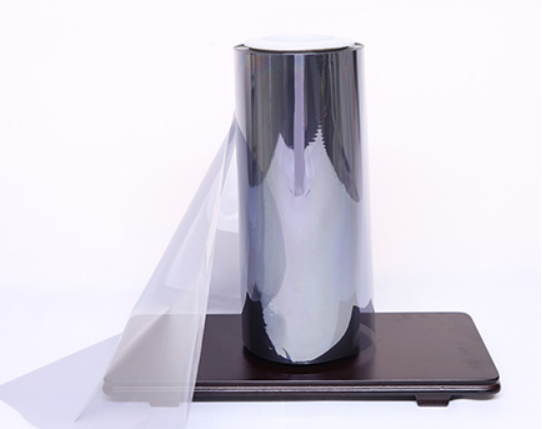

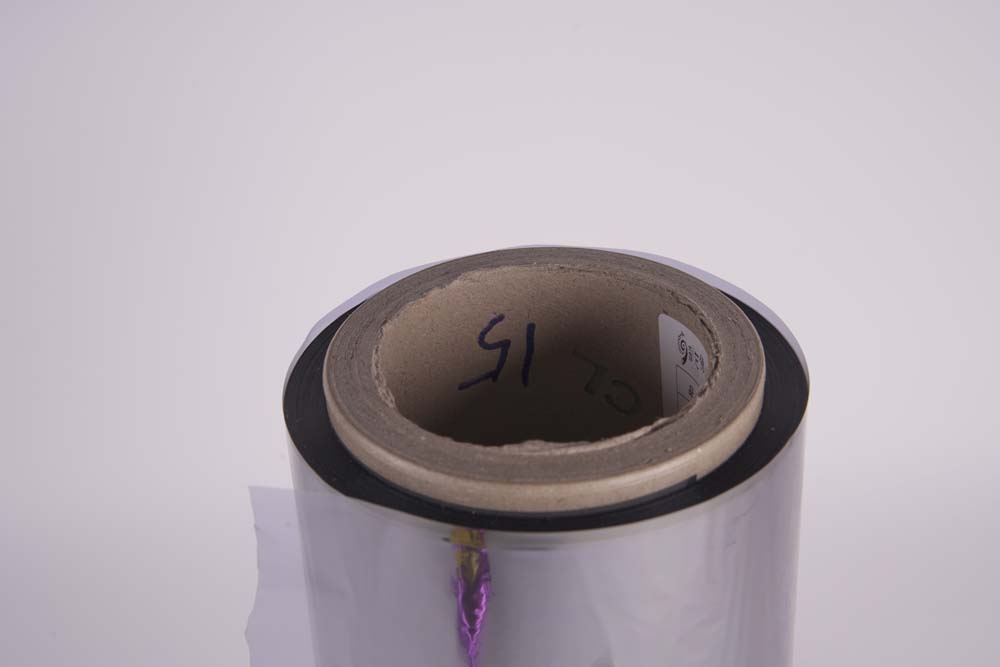

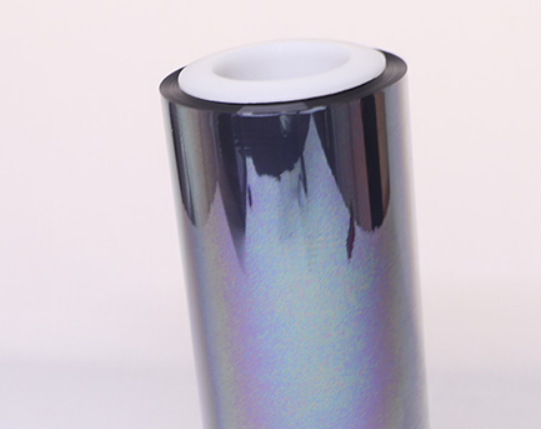

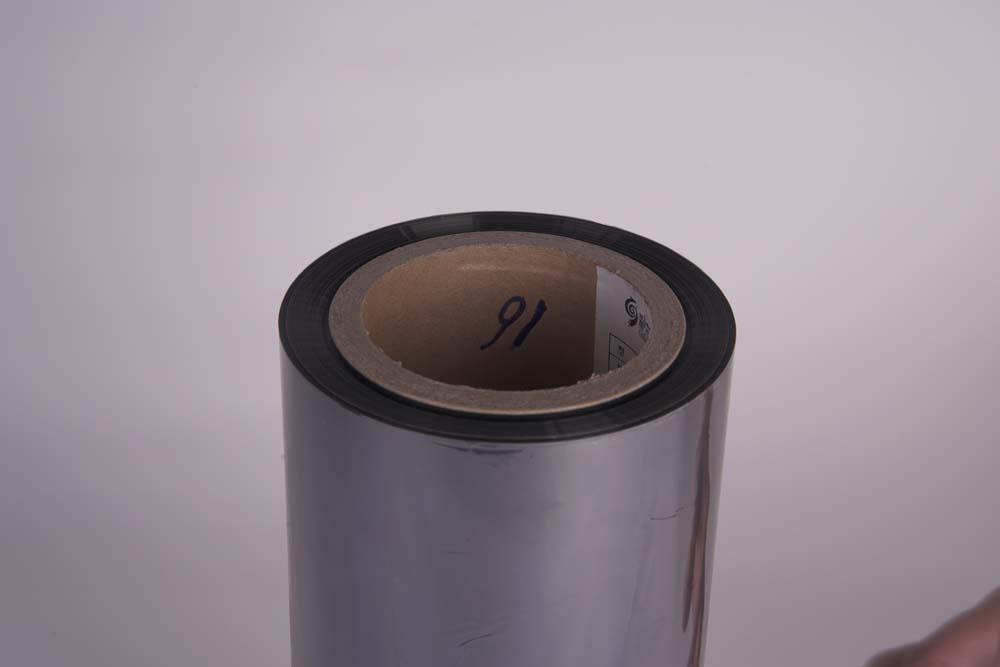

Product display
 |
 |
 |

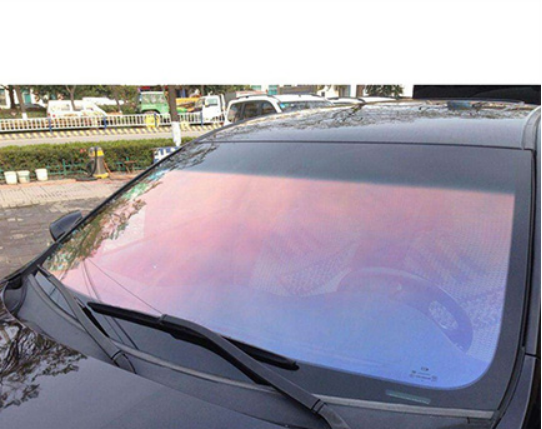

Application

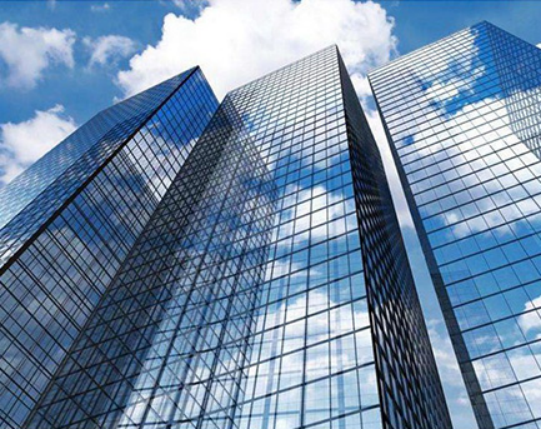

Widely used in car window film, building window film, bathroom laminated glass, indoor and outdoor glass, etc
 |
 |
 |
