Copper coating
Aug 14,2022 | FOSHAN CAILONG METALLIC PACKAGING MATERIAL CO.,LTD

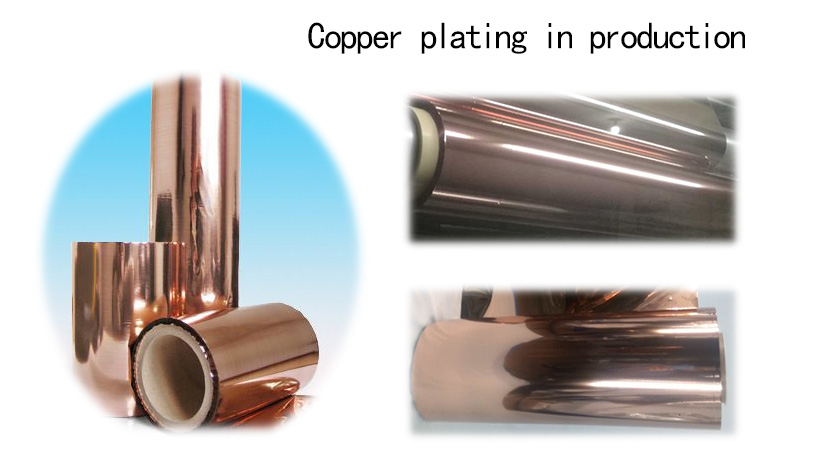

Vacuum copper plating film is on the outer layer of flexible base film with stable performance such as BOPET and BOPI, using winding vacuum coating equipment, with metal copper with a purity of more than 99.99%, through advanced PVD (physical vapor deposition) coating technology, Production of high-purity metal copper coating products. The product material not only has excellent electrical and thermal conductivity on the surface of metal materials, but also has the original chemical and physical properties of the film. It has the advantages of good mechanical properties and thermal stability. It is widely used in anti-counterfeiting labels, heat dissipation of electronic products, and electronic circuits. , electromagnetic shielding occasions, electronic tape and conductive tape, etc.
Product Specifications and Physical Properties
|
Project |
Unit |
Testing method |
Standard value |
Typical value |
|
Product width |
mm |
GB/T6673 |
≤2100 |
- |
|
Product thickness |
um |
GB/T6672 |
6~188 |
50 |
|
Cu surface resistance |
Ohm/sq |
GB/T15717 |
≤0.5 |
0.2 |
|
Surface resistance uniformity |
﹪ |
BB/T0030-2004 |
±15 |
5.0 |
|
Plating adhesion |
N/15mm |
EAA |
≥3.0 |
5.0 |
|
Conductive layer color |
|
|
Pure copper |
Pure copper |
|
Heat resistance |
℃ |
|
120 |
120 |
The copper-coated film produced by Foshan Cailong Coating and Packaging Materials Co., Ltd. has stable performance: the vertical and horizontal coatings are uniform and the adhesion can be as high as 5.0N/15mm, the coating maintains the original copper color, and the material has excellent heat resistance. Complete specifications, can be customized production according to customer requirements.
