Thermal Transffering PET Film
The product description
Thermal Transffering PET Film has good physical mechanical property, with its small thickness tolerance, high transparency, stable heating resistance, good heating bearing, low heat shrinkage, good flexibility and good peeling property. It can be used repeatedly.
Technical Date
|
Item |
Testing Methods |
Units |
Standard |
Typical Values |
|
|
GB/T16958-2008 |
|||||
|
Thickness |
GB/T6672 |
um |
─ |
12 |
|
|
Haze |
GB/T 2410 |
% |
≤8.0 |
3 |
|
|
Gloss |
GB/T 8807 |
% |
≥100 |
110 |
|
|
Density |
GB/T 1033 |
g/cm³ |
1.4 |
1.4 |
|
|
Heat Shrinkage Rate |
MD |
150℃*30min |
% |
≤3.0 |
0.5 |
|
TD |
% |
≤3.0 |
0 |
||
|
Surface Tension |
Corona |
GB/T 14216-2008 |
mN/m |
─ |
46 |
|
Non-corona |
─ |
46 |
|||
|
Tensile Strength |
MD |
GB/T1040.3 |
Mpa |
≥170 |
210 |
|
TD |
≥170 |
205 |
|||
|
Elongation at Break |
MD |
GB/T1040.3 |
% |
≤200 |
130 |
|
TD |
≤200 |
120 |
|||
|
Coefficient of Friction |
dynamic |
GB/10006 |
─ |
≤0.55 |
0.35 |
|
static |
─ |
≤0.65 |
0.4 |
||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.

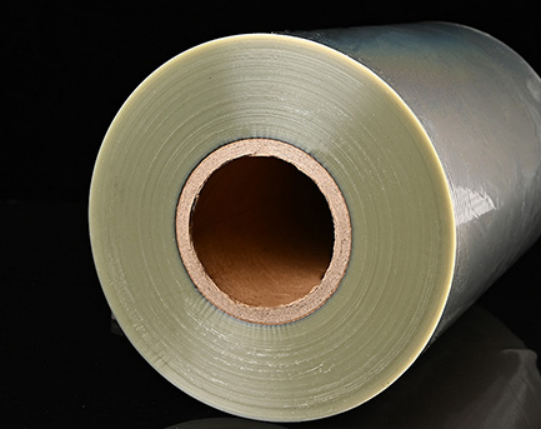

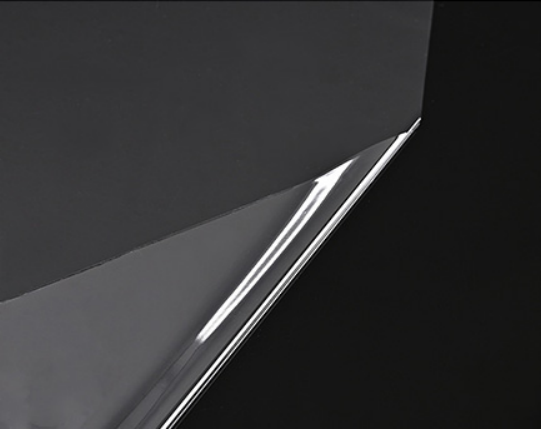

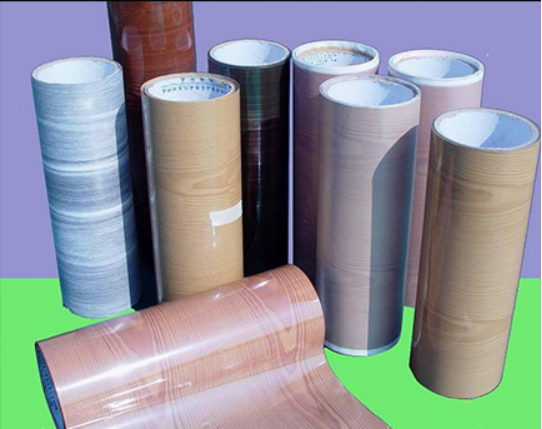

Product display
 |
 |
 |
Application
1.It is used for the materials of lasering, hot stamping and thermal transferring.
2.It is also used as protective films.
 |
 |
 |
