Metallized PE Film VMPE
The product description
Metallized PE film has Excellent metallic luster, low crystal point, low precipitation and excellent heat sealing performance, it is the choice of single material package.
Technical Date
|
Item |
Sdandard values |
||
|
Apparence |
Film |
There should be no broken edges, flanging, scratches, wrinkles, severe bursts, holes, impurities, and Aluminium layer peeling off. |
|
|
Sputtering point |
≤4 pcs/m2 |
||
|
Connector |
The joints shall be neat, firm and smooth; the number of joints per roll shall not exceed one, and the length of each section shall not be less than 800m. |
||
|
Film Roll End Face |
Unevenness ≤ 3mm |
||
|
Film roll core |
Smooth surface, no bending, dent, or collapse |
||
|
Size and deviation |
Thickness（µm） |
＜50 |
≥50 |
|
Thickness deviation（%） |
±14 |
±12 |
|
|
Width deviation（mm） |
±3 |
±3 |
|
|
Tensile Strength （MPa） |
MD |
≥17 |
≥17 |
|
TD |
≥17 |
≥17 |
|
|
Elongation at Break(%) |
MD |
≥180 |
≥230 |
|
TD |
≥180 |
≥230 |
|
|
Surface Tension （mN/m） |
Al side |
≥36 |
≥36 |
|
Al Adhesion |
N/15mm |
EAA ≥2.5 |
|
|
Al Thickness |
O.D. |
≥1.9 |
|
|
Al Uniformity（%） |
±10 |
||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
1.It has no odor and toxicity, Environmentally-friendly properties.
2.Heat reflection, heat insulation, sound insulation, anti-radiation, anti-vibration.

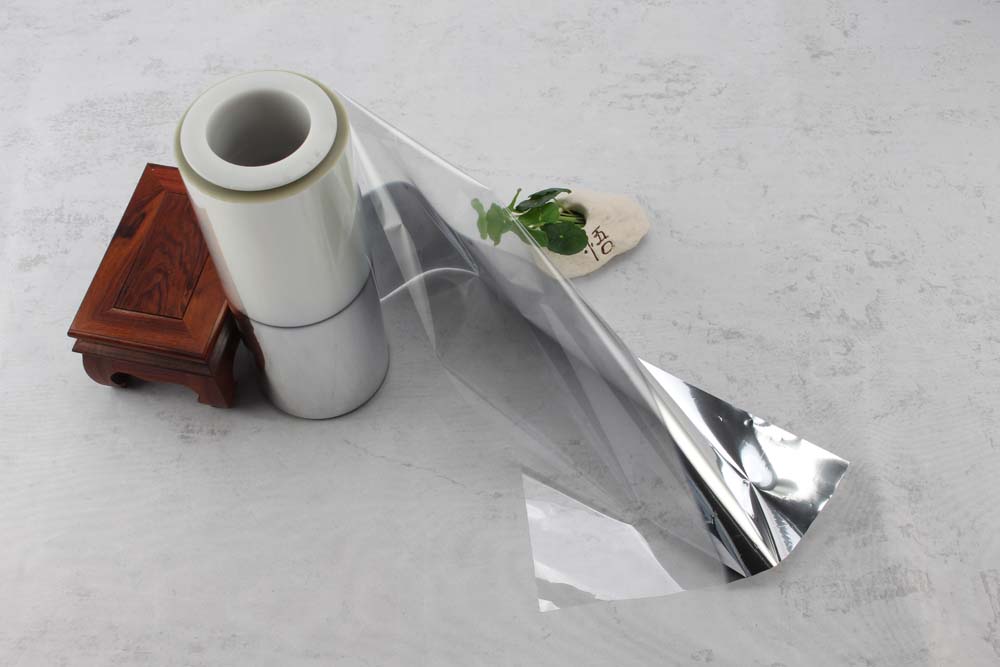

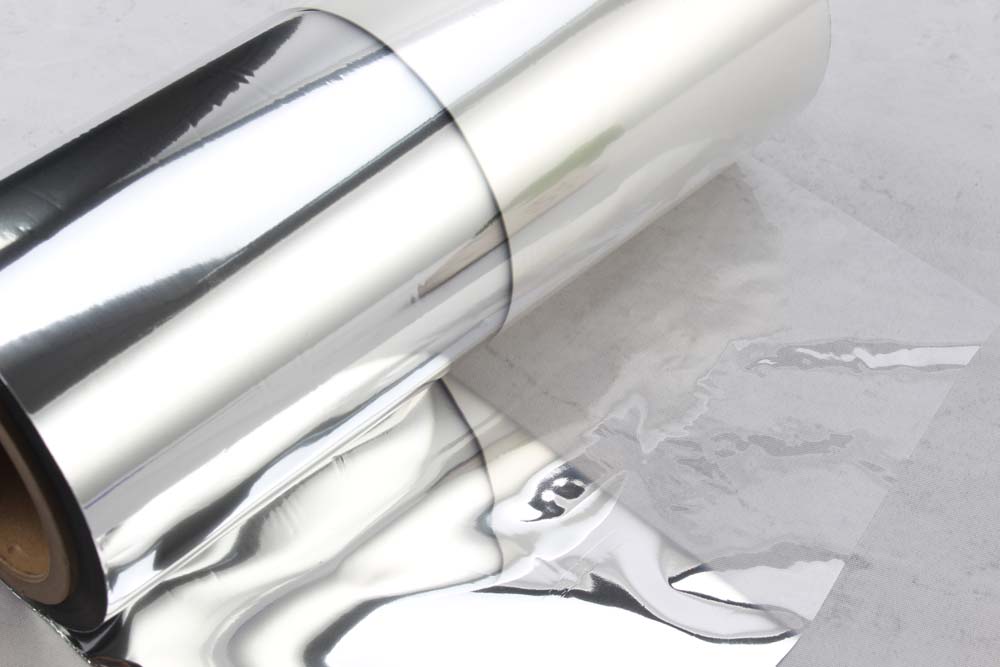

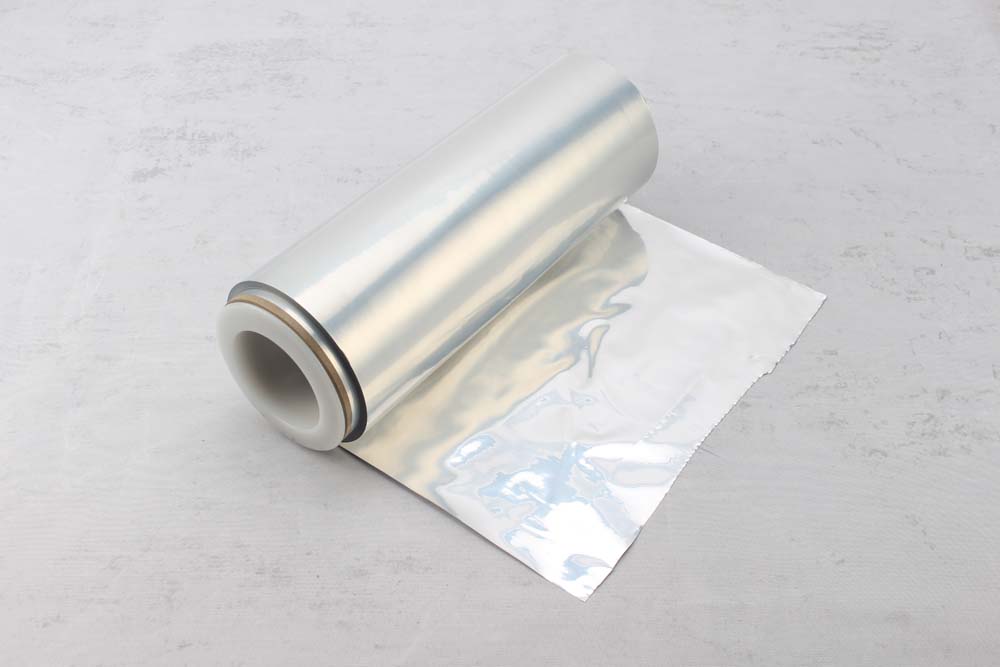

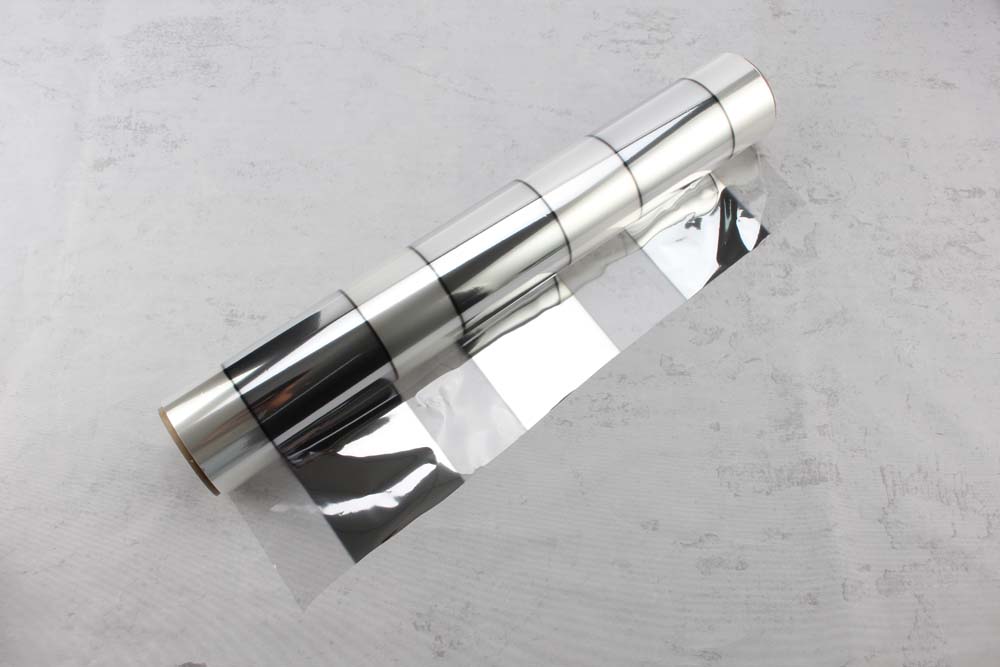

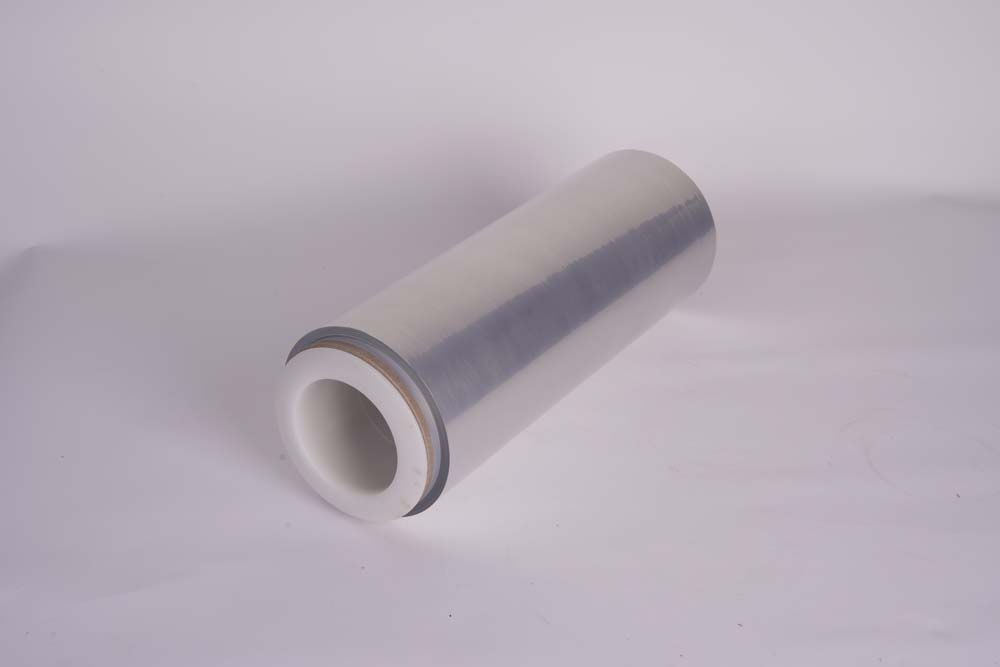

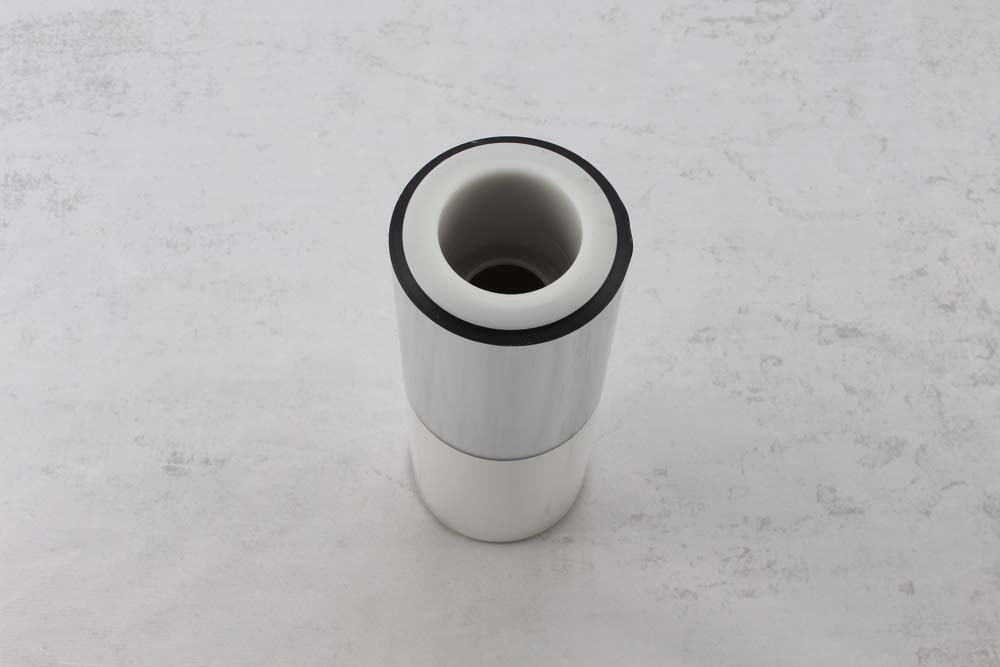

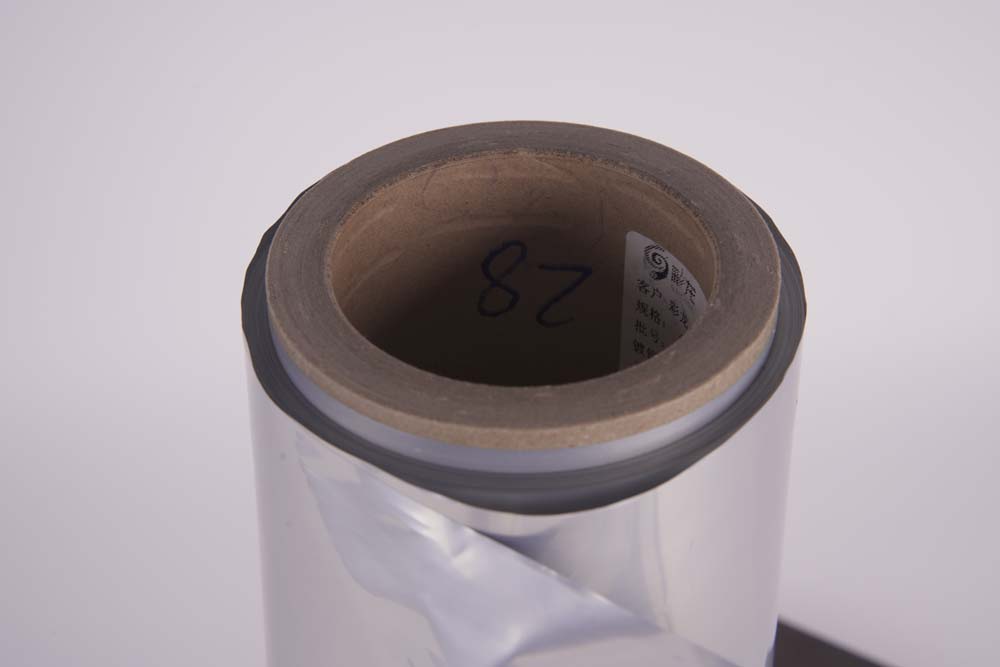

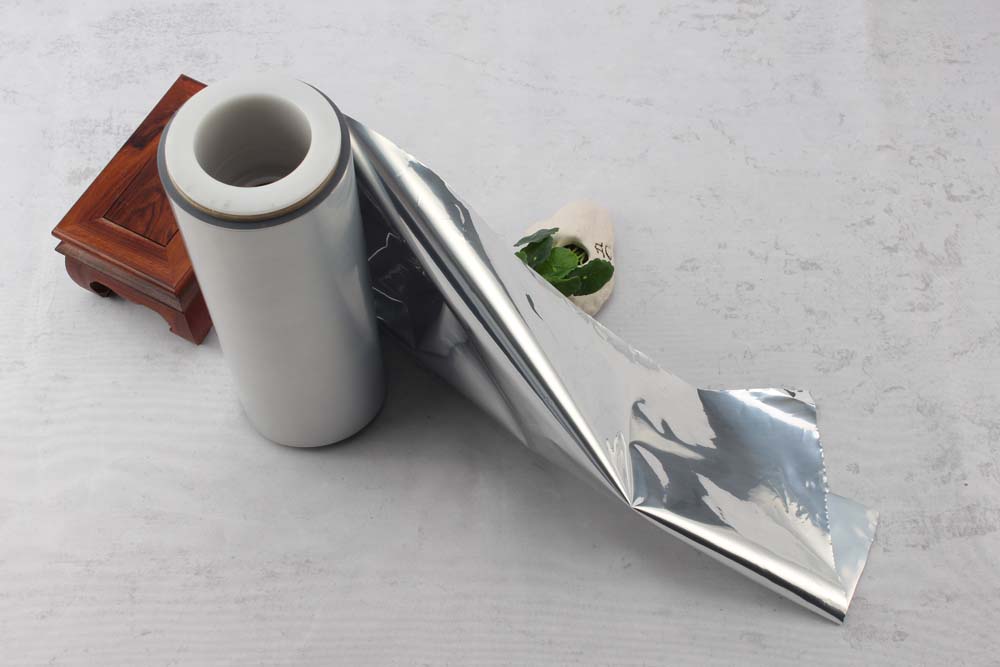

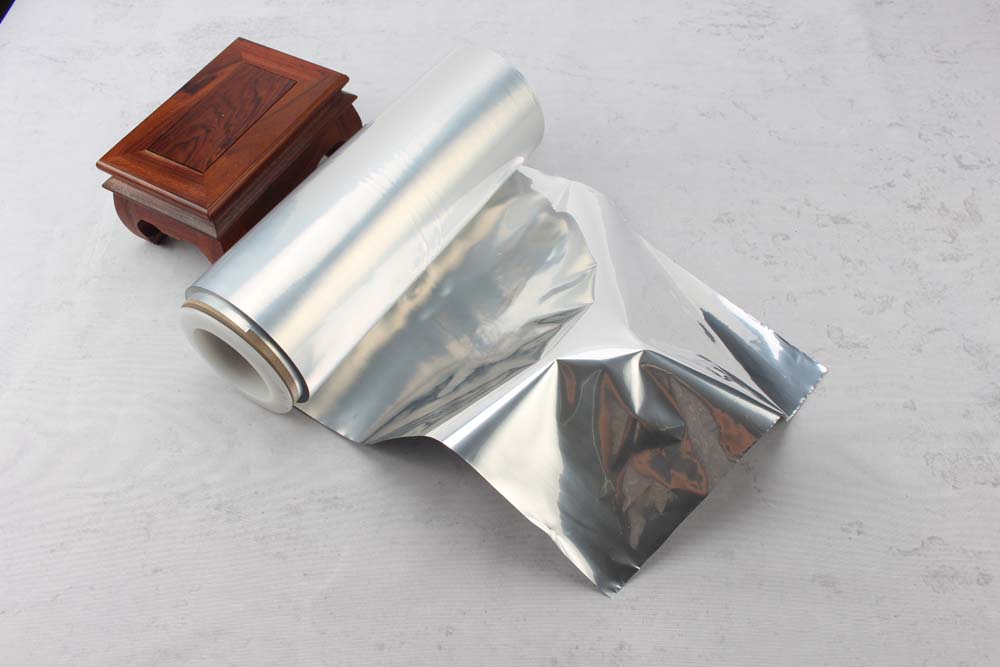

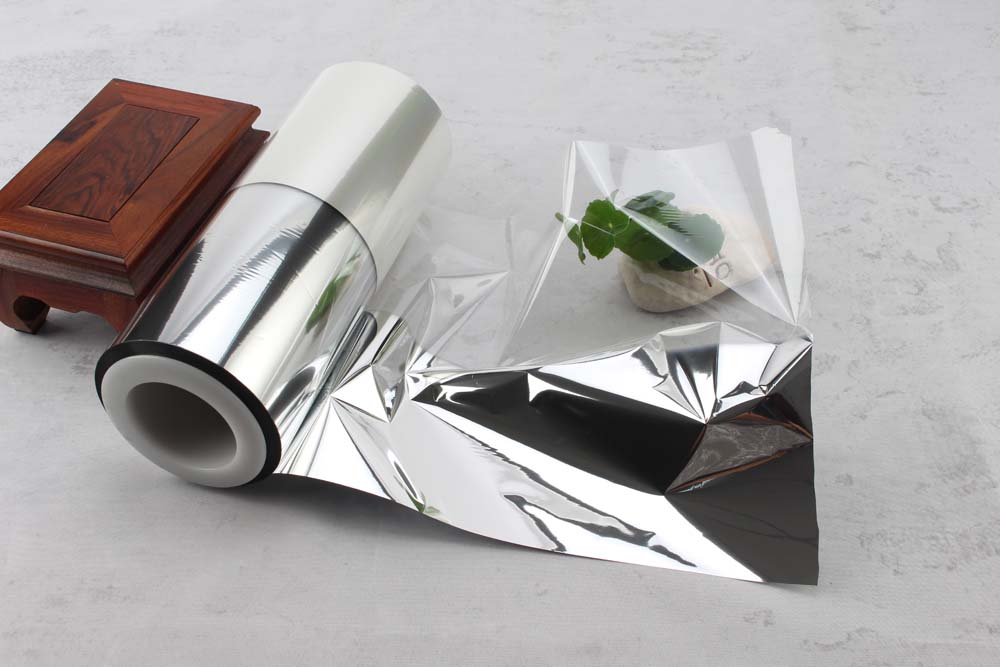

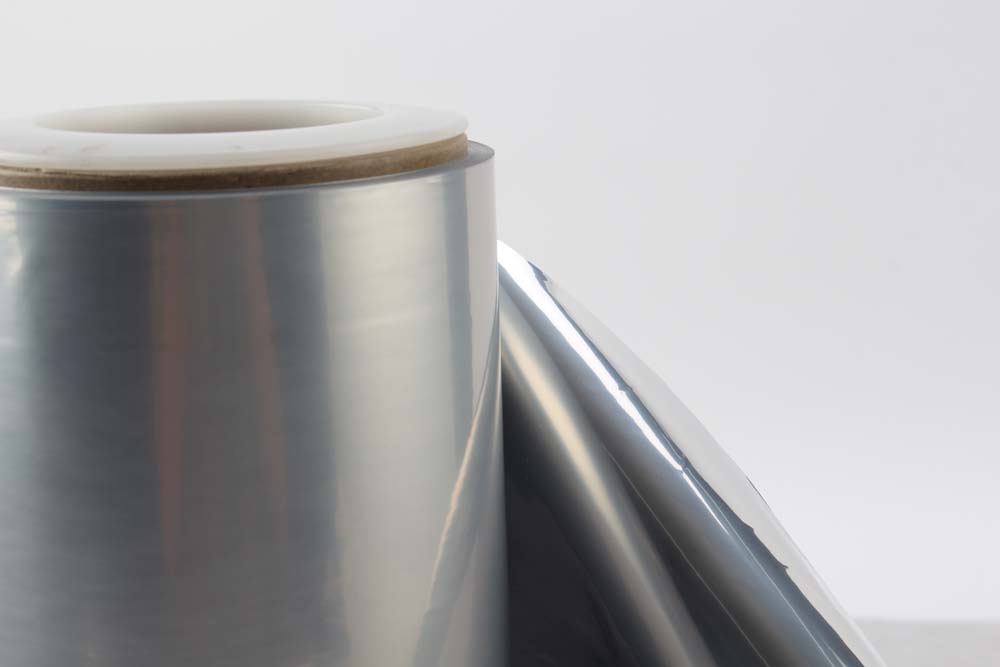

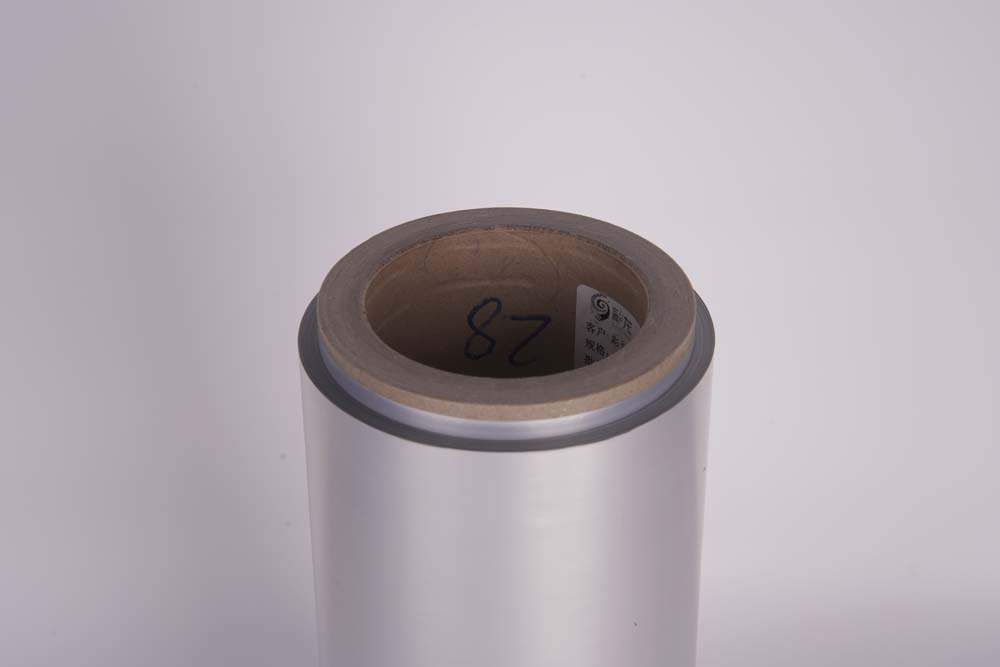

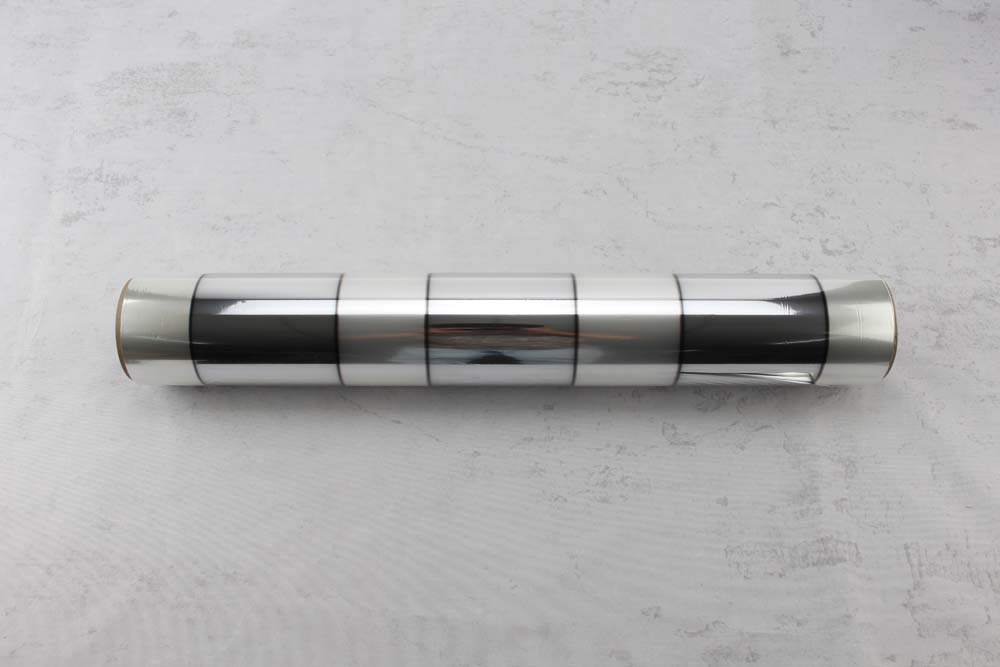

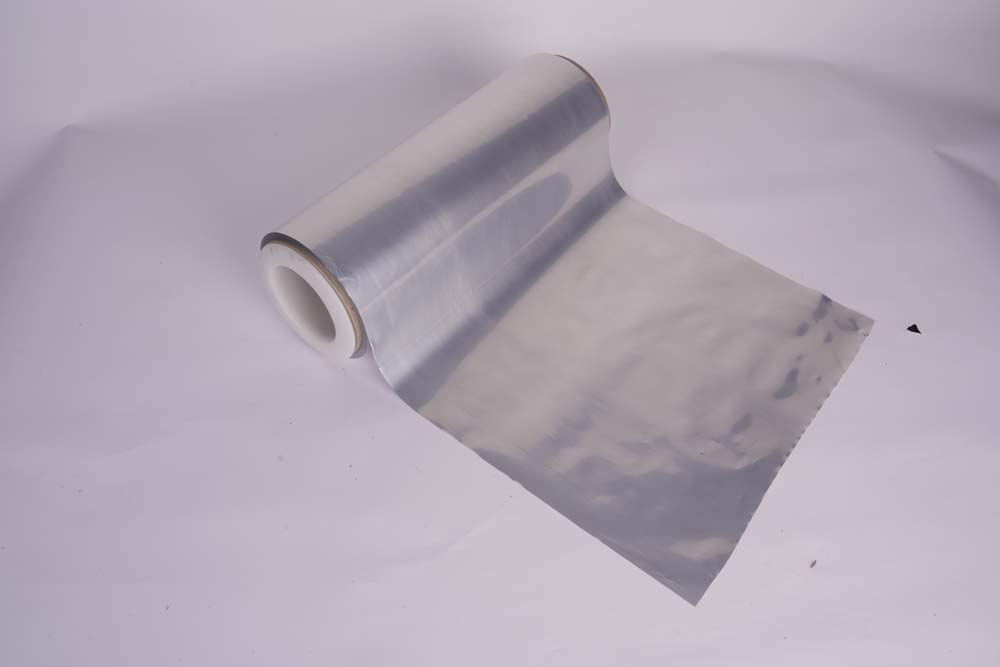

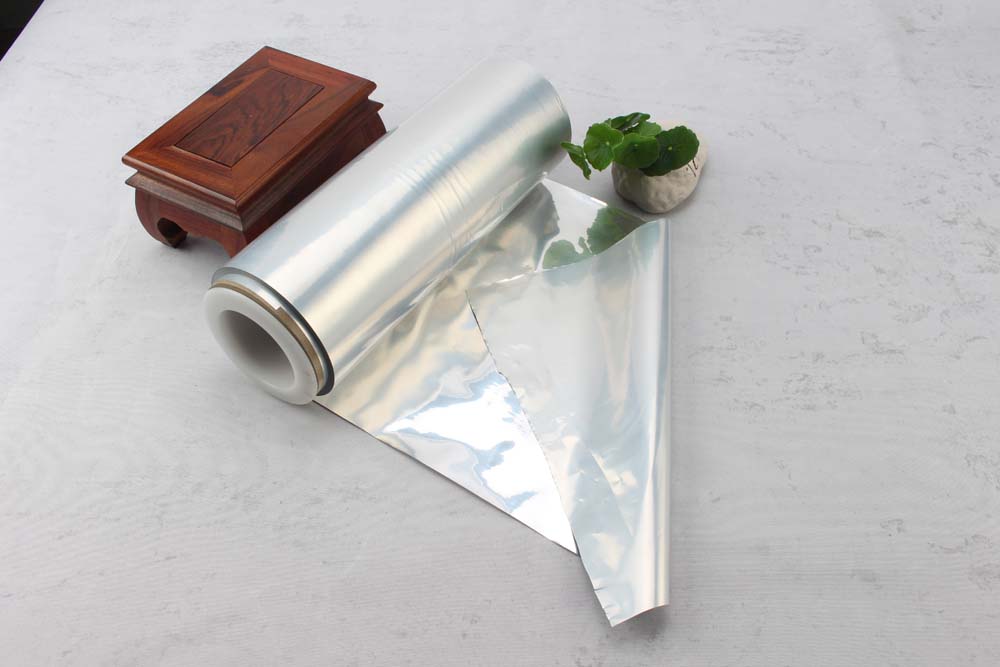

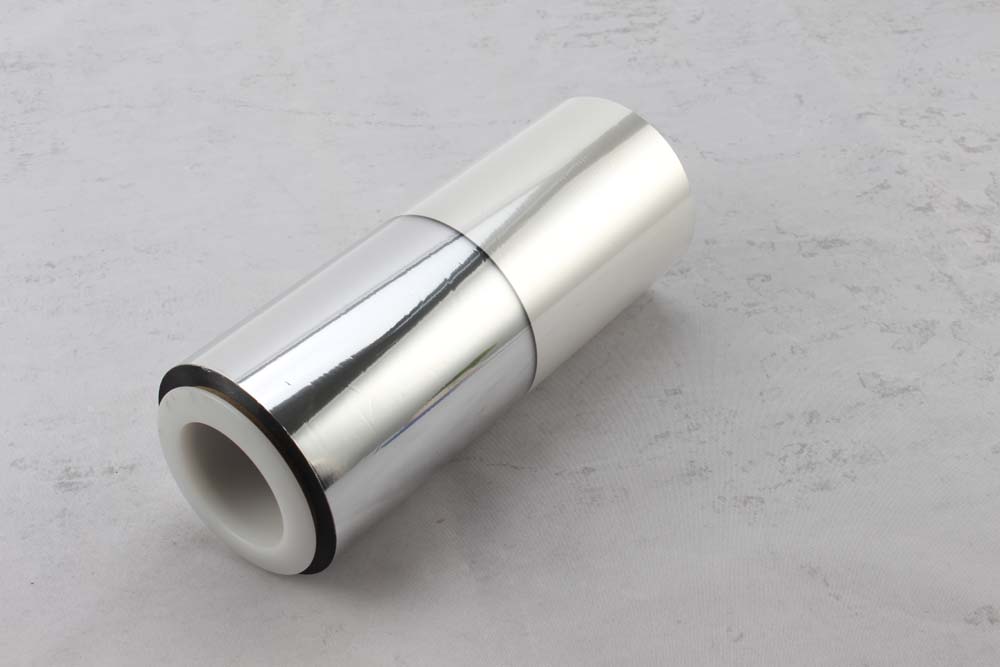

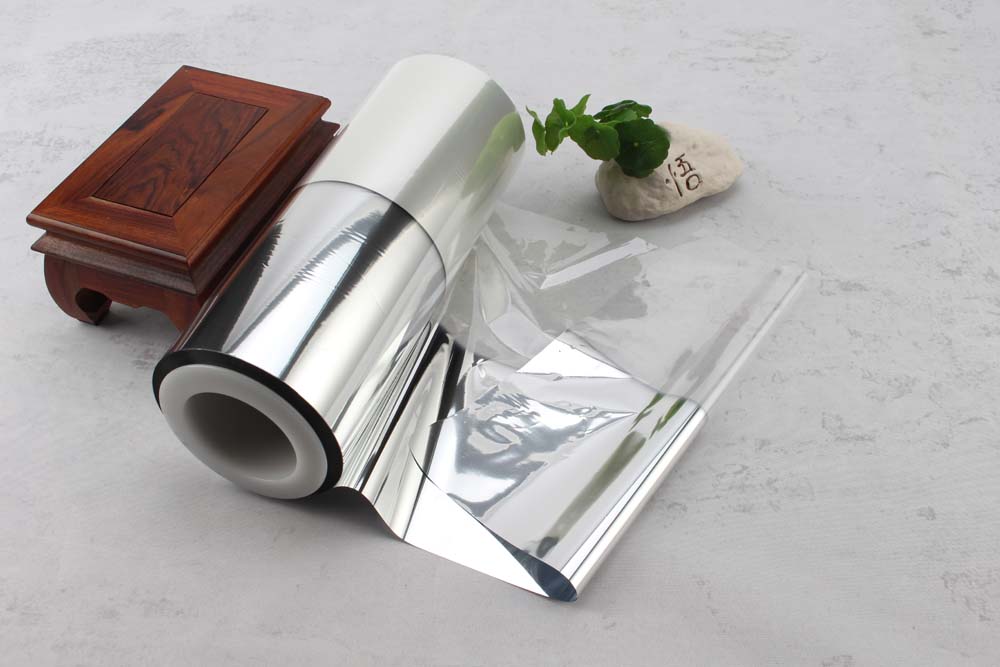

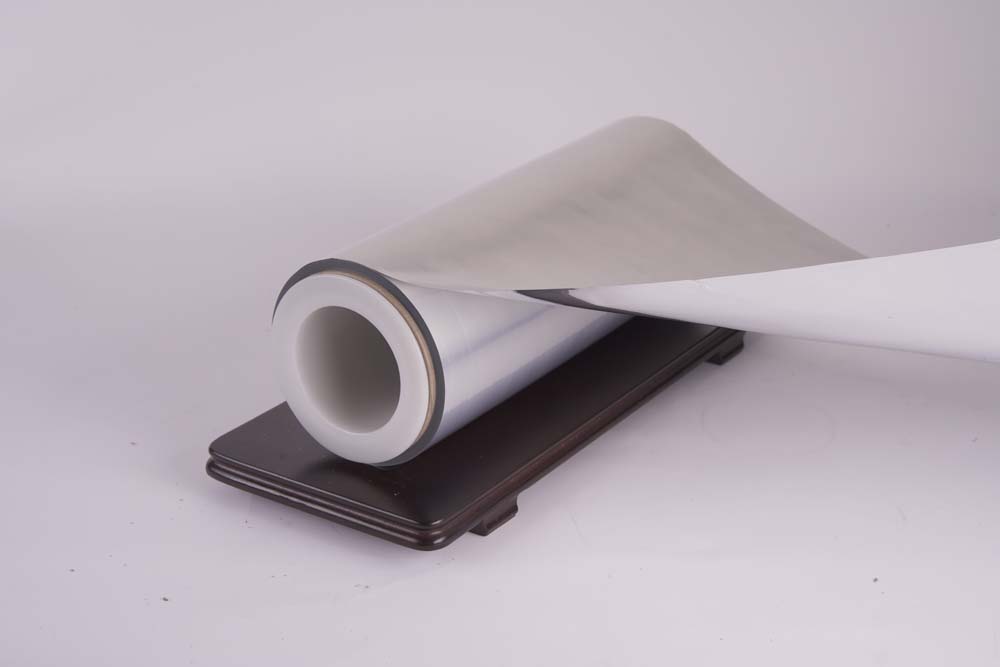

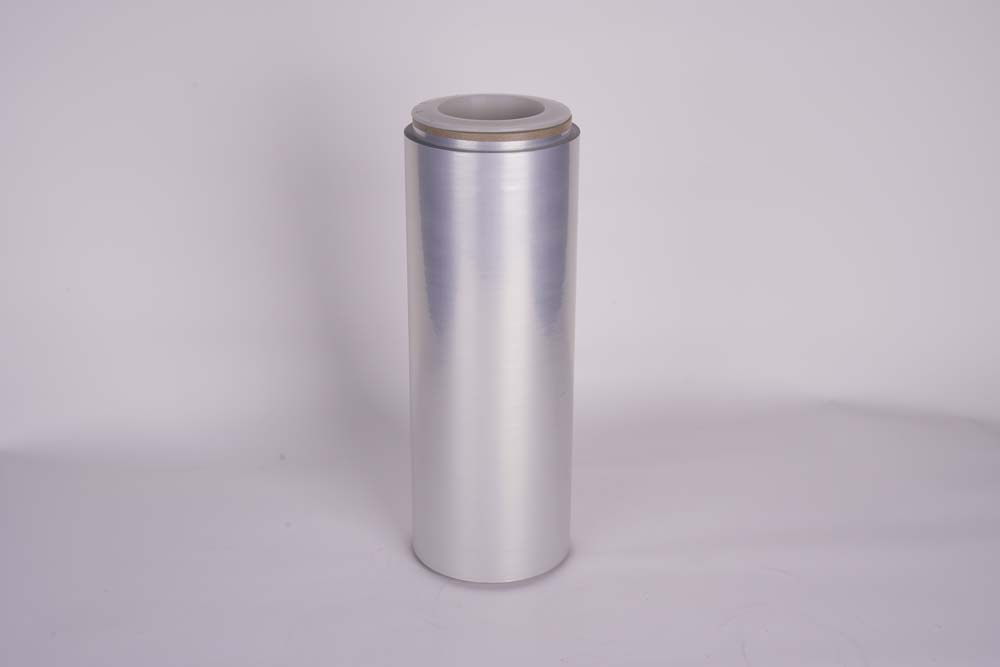

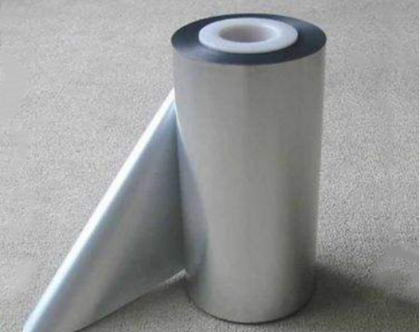

Product display
 |
 |
Application

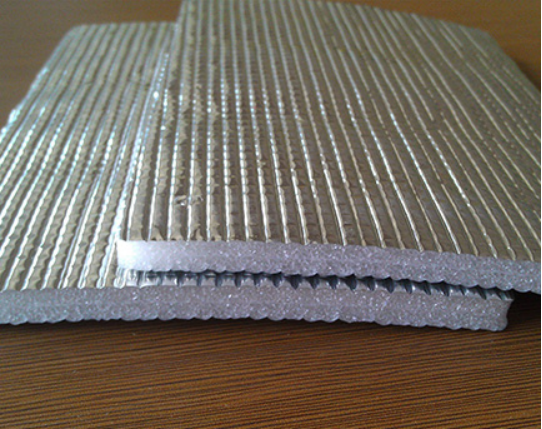

1.Lamination with other materials like laminating with VMPE for packpaging, Woven fabric for building reflective insulation. laminating materials, food packages, eco-packages, daily packages, printing films and so on.

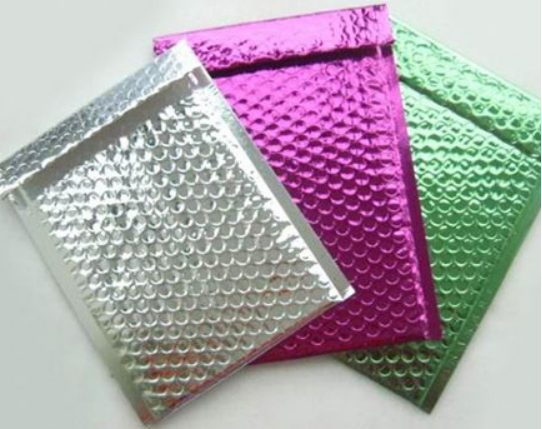

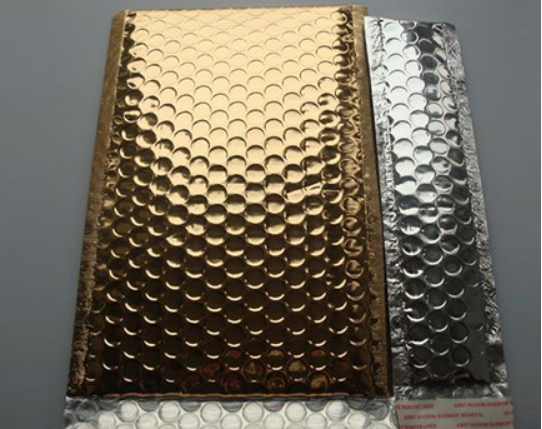

2.It can be used to make static shielding bag for electronic product,first-aid. To make sunshade or ice bag etc.
 |
 |
 |
