Double Side Metallized PET Film (HIGH ADHESION) VPET-GF02
The product description
Double Side Metallized PET Film (HIGH ADHESION) VPET-GF02,Through special metallization technology, both sides of the BOPET film are coated with a thin layer of aluminum, which acts as a flexible packaging material for special purposes.
Technical Date
|
Items |
Testing Methods |
Units |
Standard |
Typical Values |
|
|
BB/T 0030-2019 |
|||||
|
Thickness |
GB/T6672 |
um |
─ |
8~100 |
|
|
Aluminum Thickness |
GB/T15717 |
Ω/□ |
≤2.5 |
1.8 |
|
|
Density |
GB/T 1033 |
g/cm³ |
─ |
1.4 |
|
|
Aluminum Adhesion |
BB/T0030-2019 |
% |
≤20 |
1 |
|
|
Aluminum Uniformity |
BB/T0030-2019 |
% |
±15 |
2 |
|
|
Surface Tension |
Al Side |
GB/14216-2008 |
mN/m |
≥48 |
52 |
|
Non-Al side |
≥44 |
46 |
|||
|
Tensile Ttrength |
MD |
GB/T1040.3 |
Mpa |
（<70um）≧170 |
190 |
|
TD |
（≧75um）≧150 |
195 |
|||
|
Elongation at Break |
MD |
GB/T1040.3 |
% |
≥80 |
110 |
|
TD |
≥80 |
100 |
|||
Important Tips：
1.The data and ,information above are obtained from our company's tests, for customers' reference of sample or the product usage;
2.The final performance of the product is related to the composite process,and improper use will cause destructive damage to the product;
3.For other special requirements,it is better to contact with our technical department for more details,so that the products are more suitable for customers.
Characteristics
1.It is a kind of beautiful, cheap, excellent performance packaging material. It's very reflective
2.Double - sided metal film has better shading and anti - ultraviolet performance

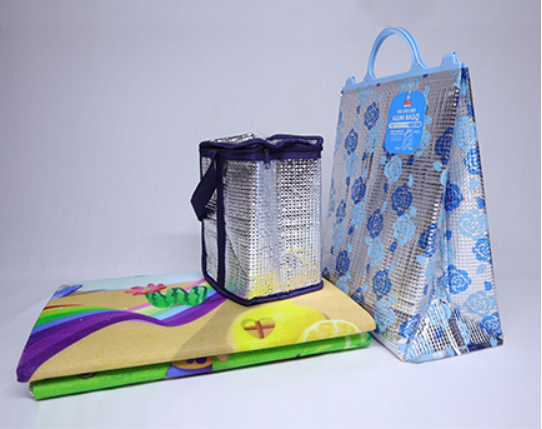

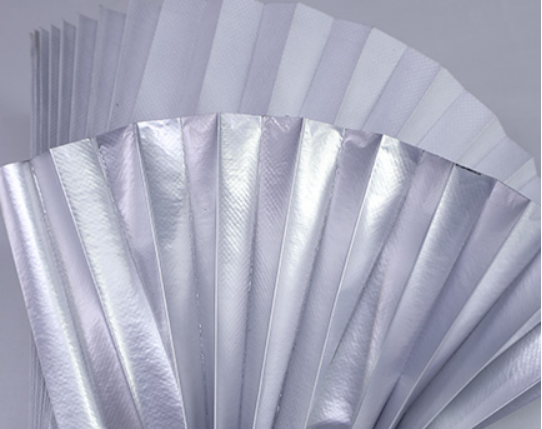

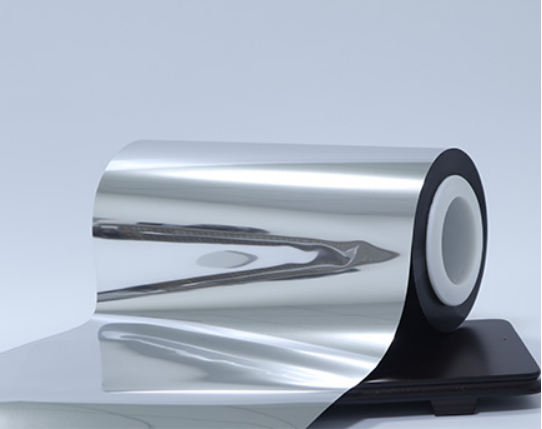

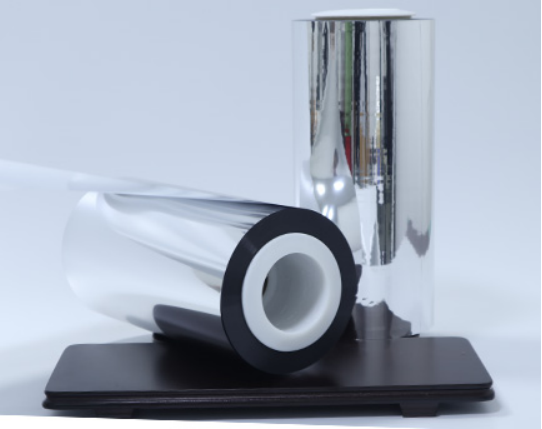

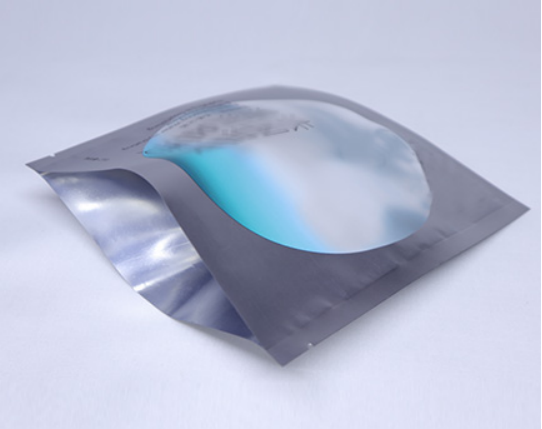

Product display
 |
 |
 |
Application
1.Suitable for printing, food packaging, cosmetic packaging, electronic packaging, decorative materials, labels, etc
2.Bright metal film can replace aluminum foil (lower cost than aluminum foil),beautiful appearance, good insulation performance.Therefore,it is widely used in packaging industry
 |
 |
 |
Double Side Metallized PET Film (HIGH ADHESION) VPET-GF02
